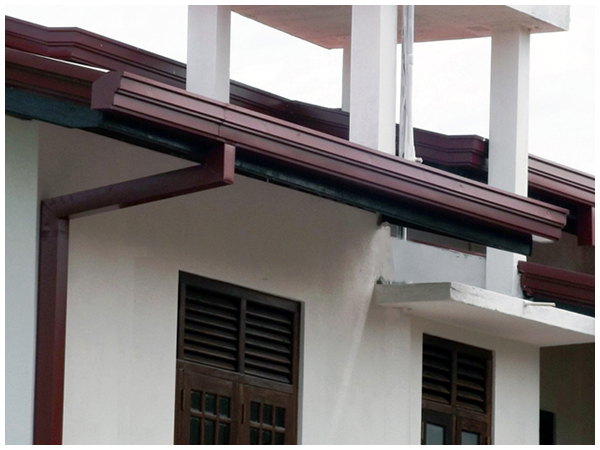

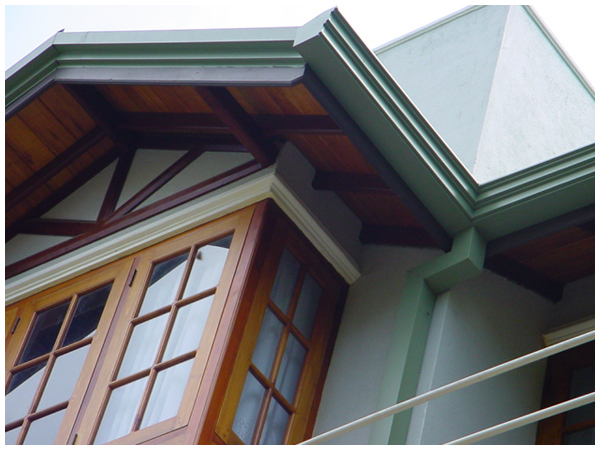

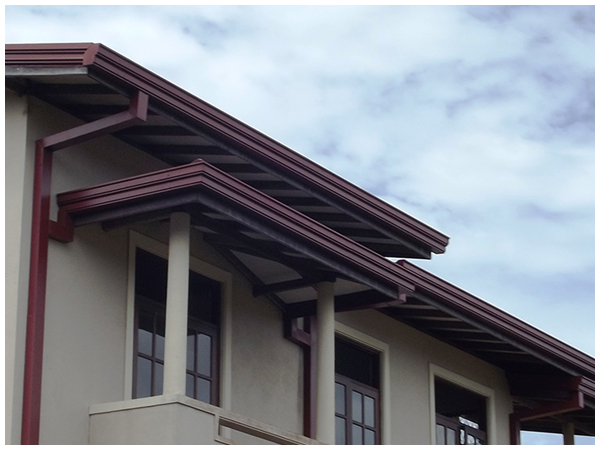

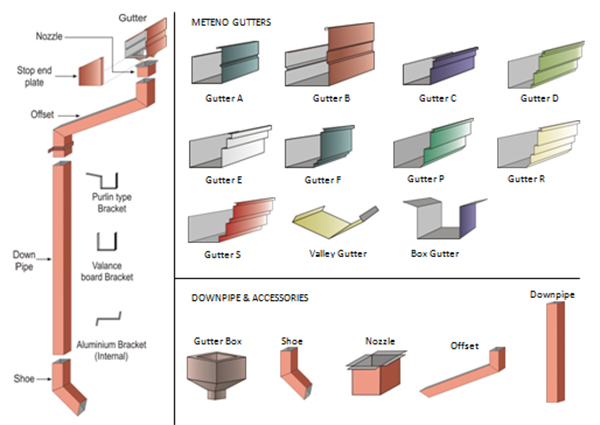

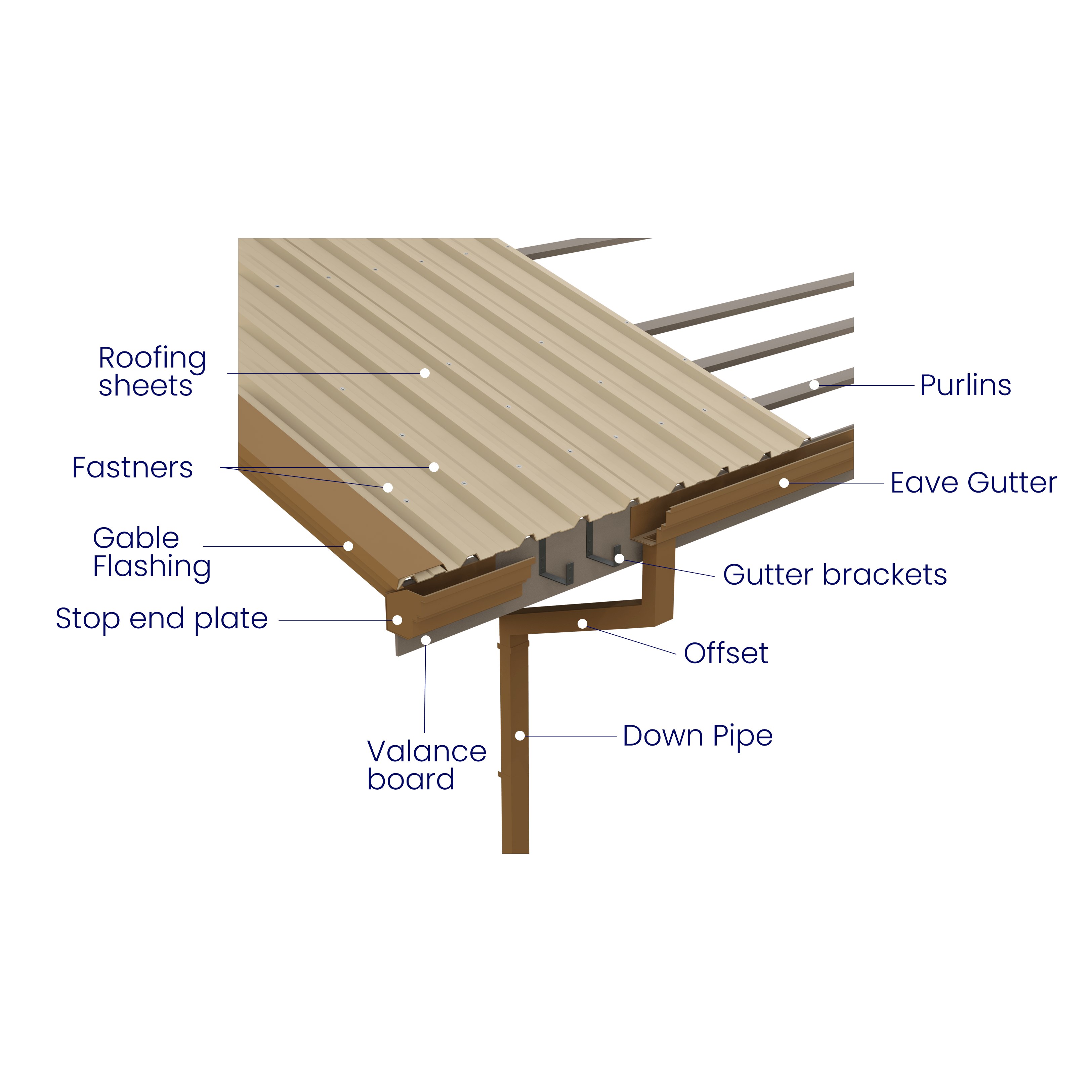

Metecno Rainwater solutions consist of Gutters and Downpipes together with whole range of accessories in colour coated zinc aluminium alloy materials. These items are available in standard lengths up to 8m and custom lengths also available to suit customer requirements.

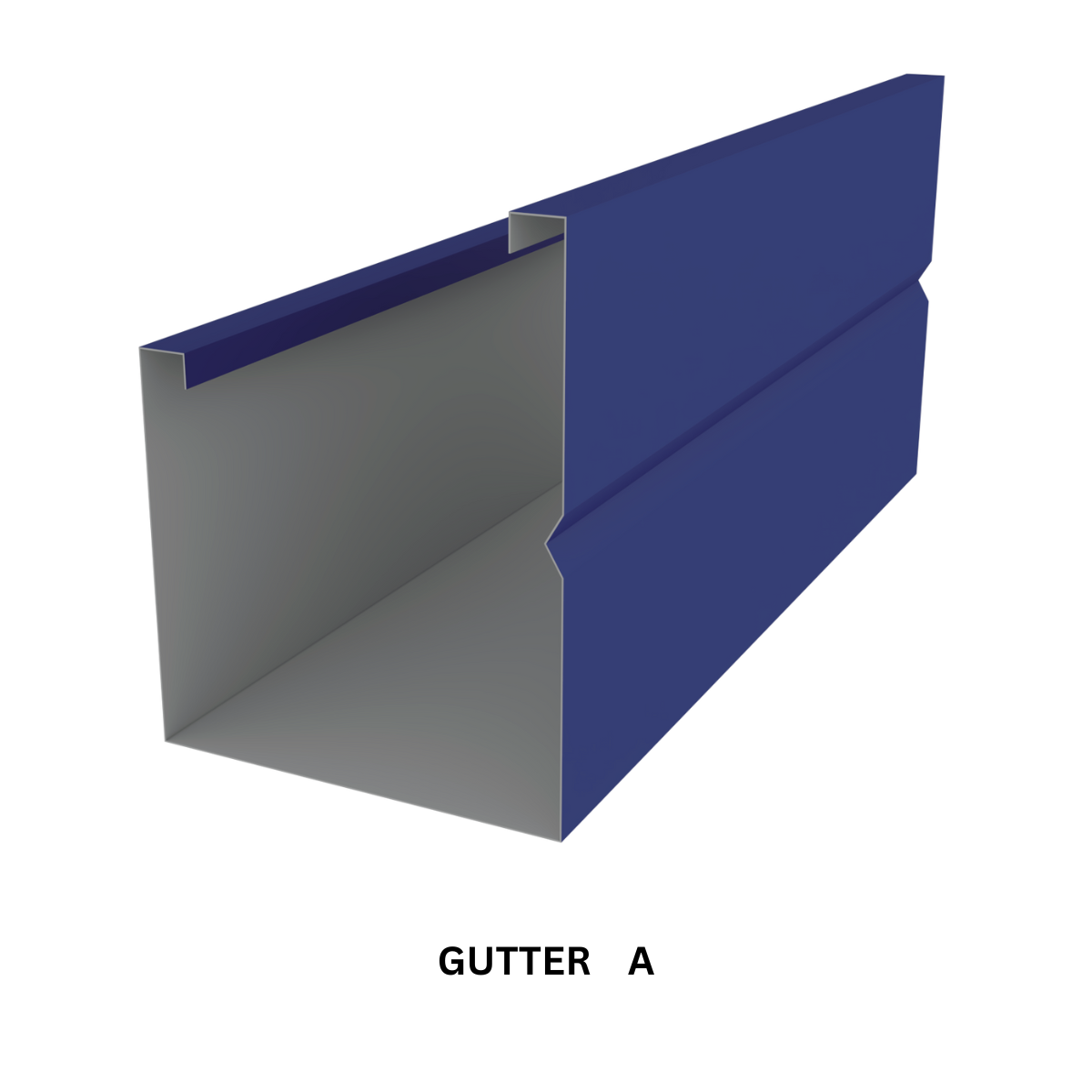

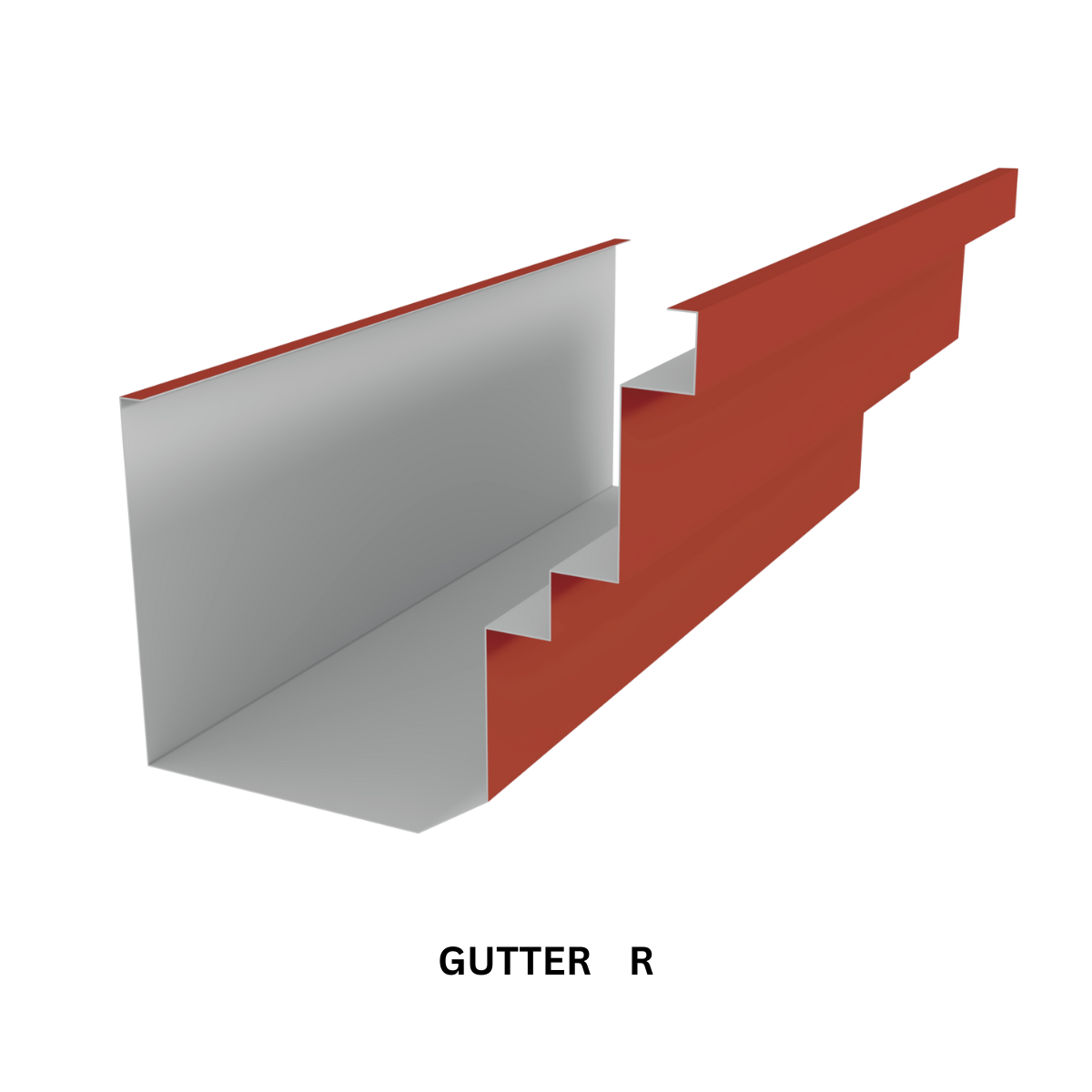

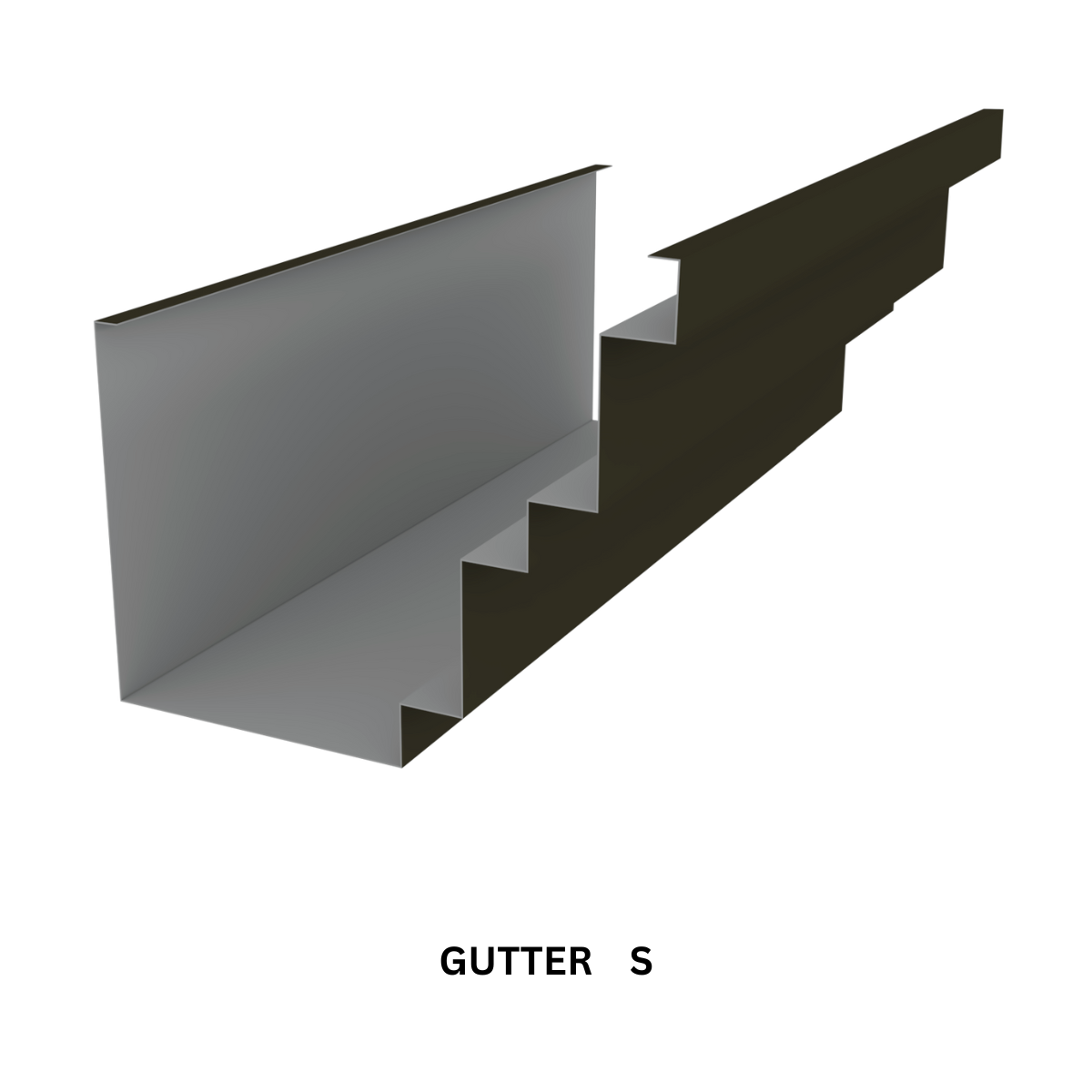

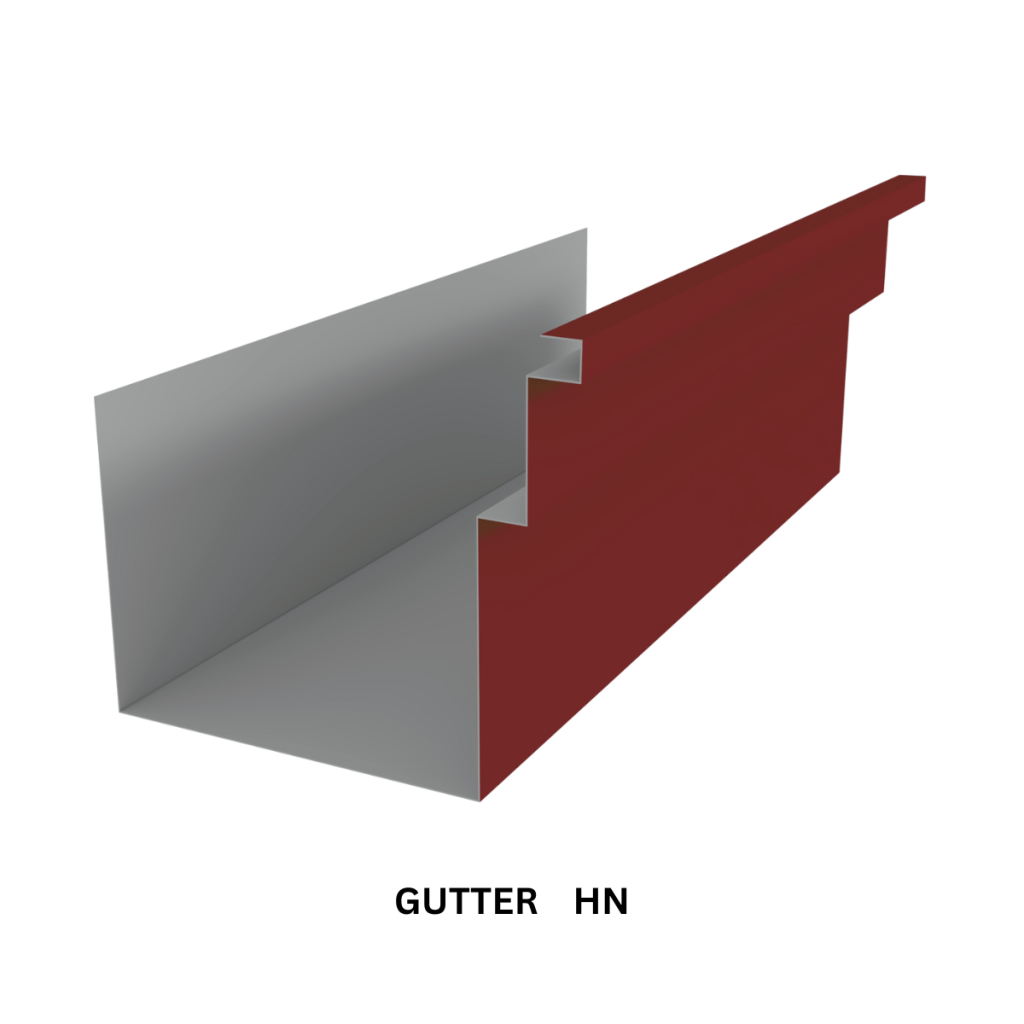

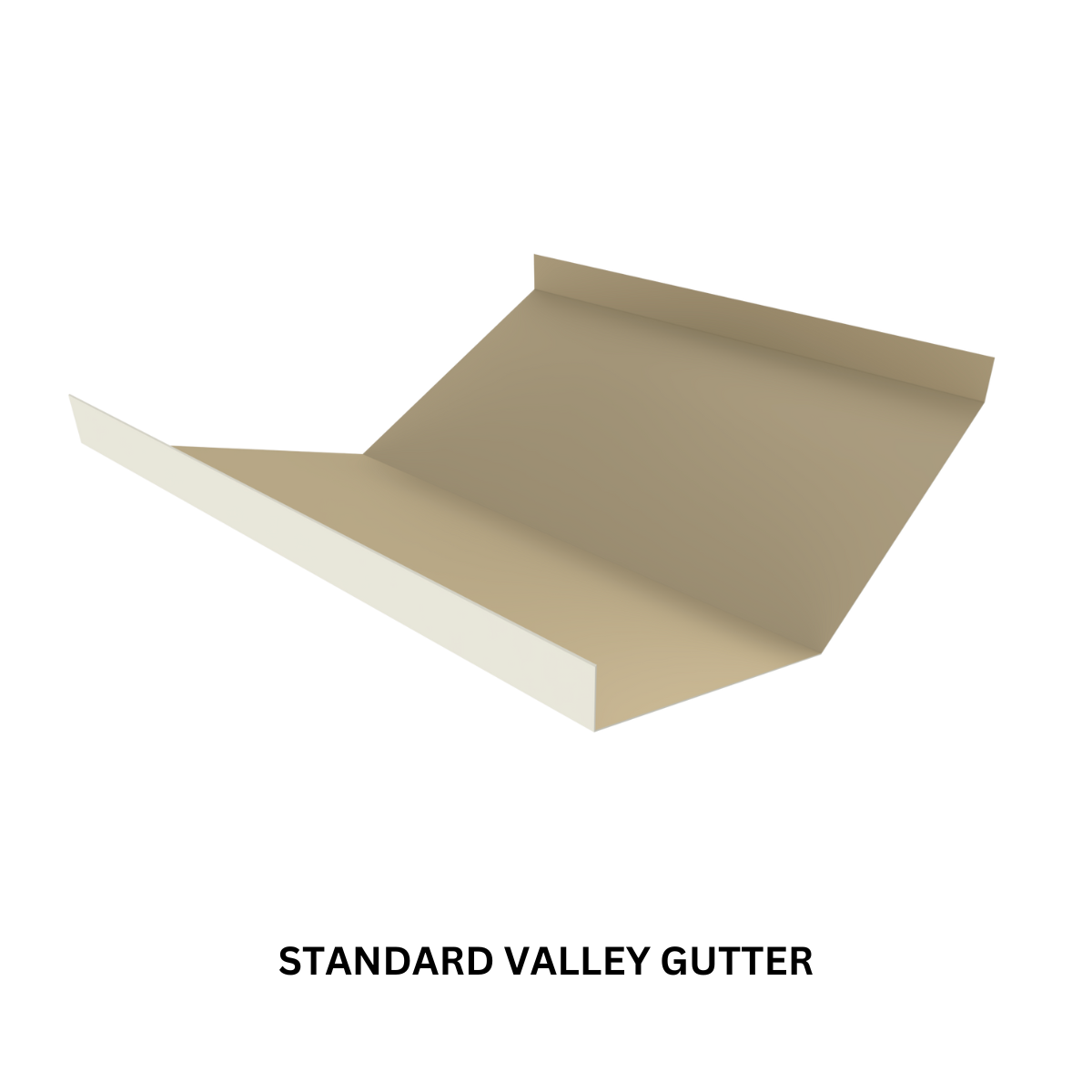

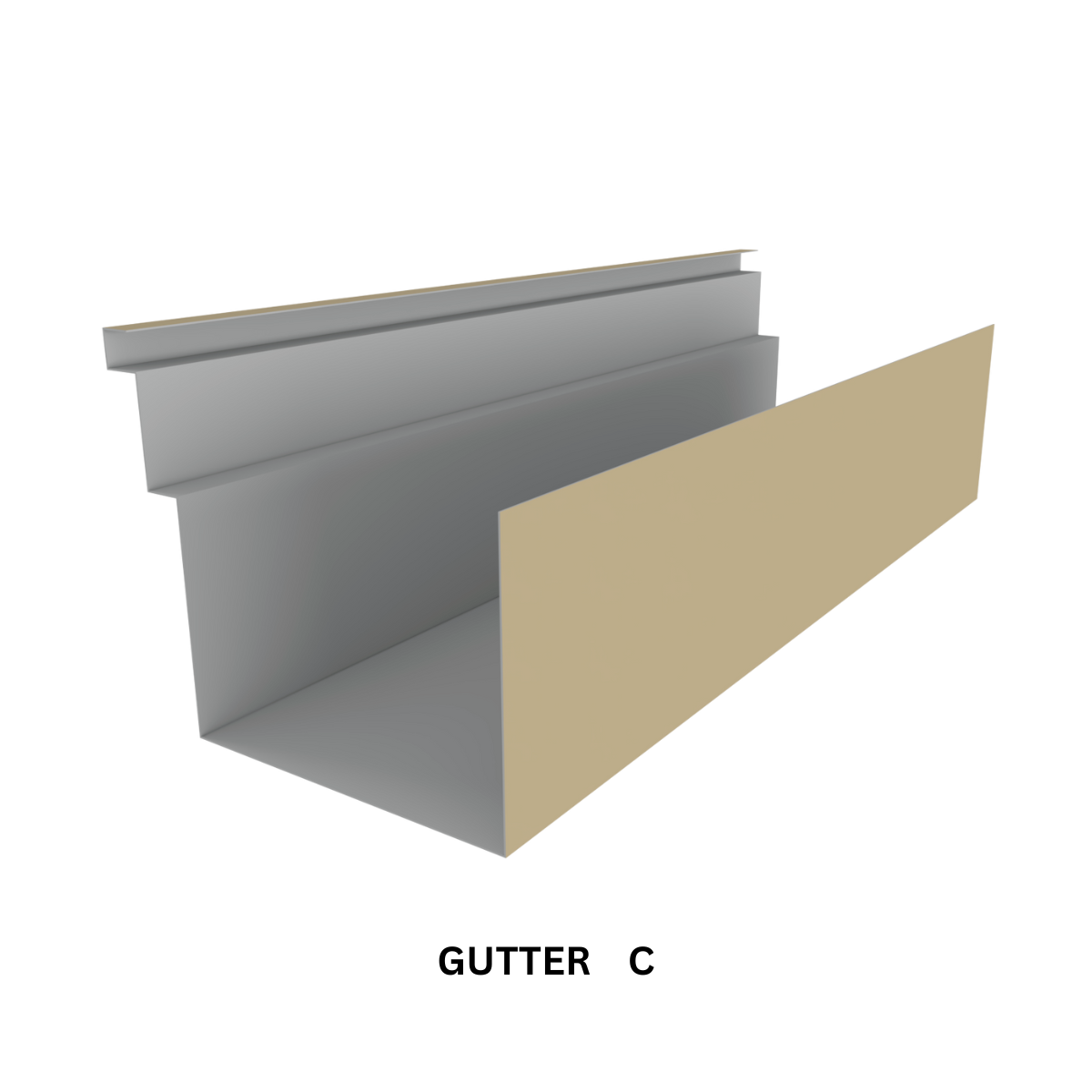

Metecno Gutters

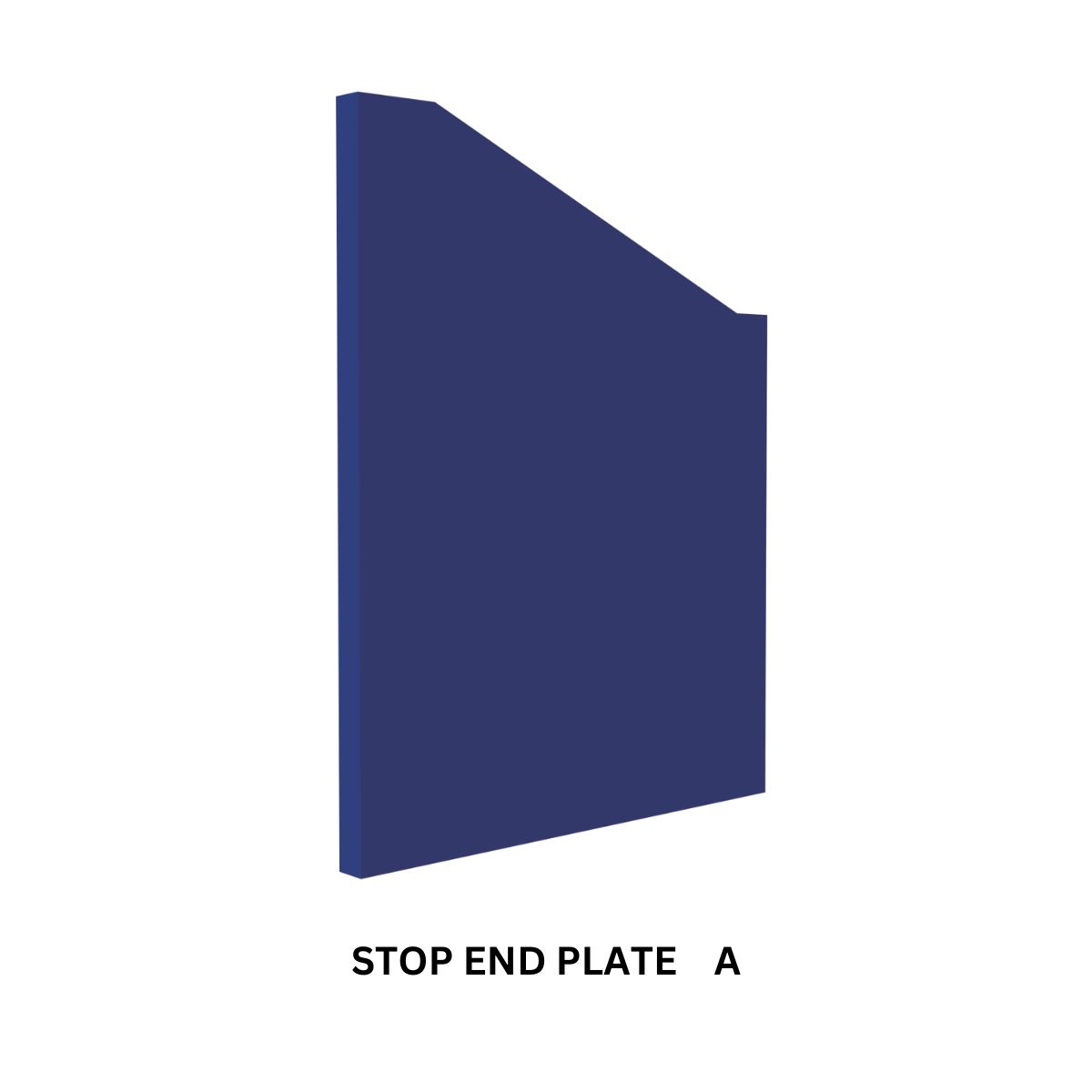

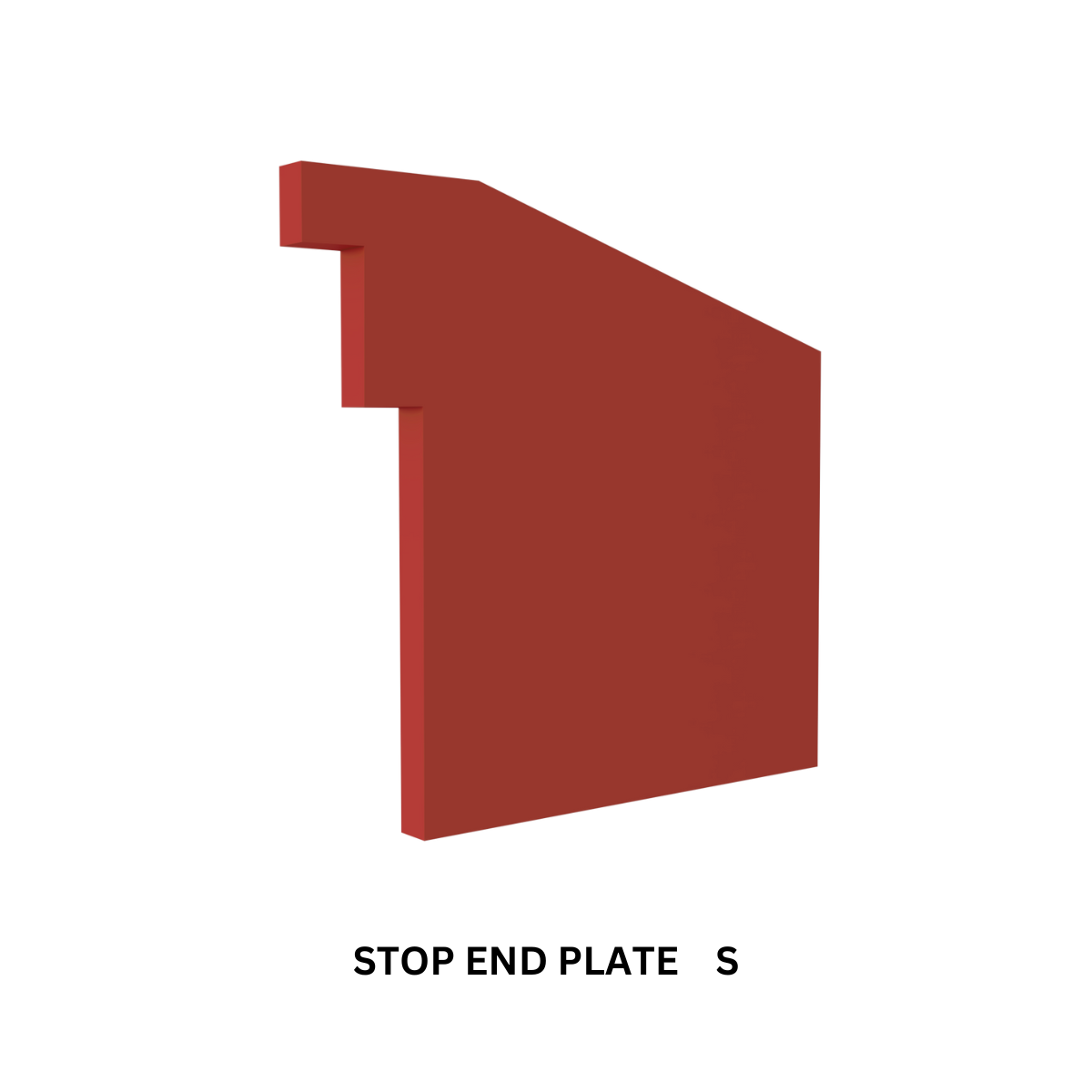

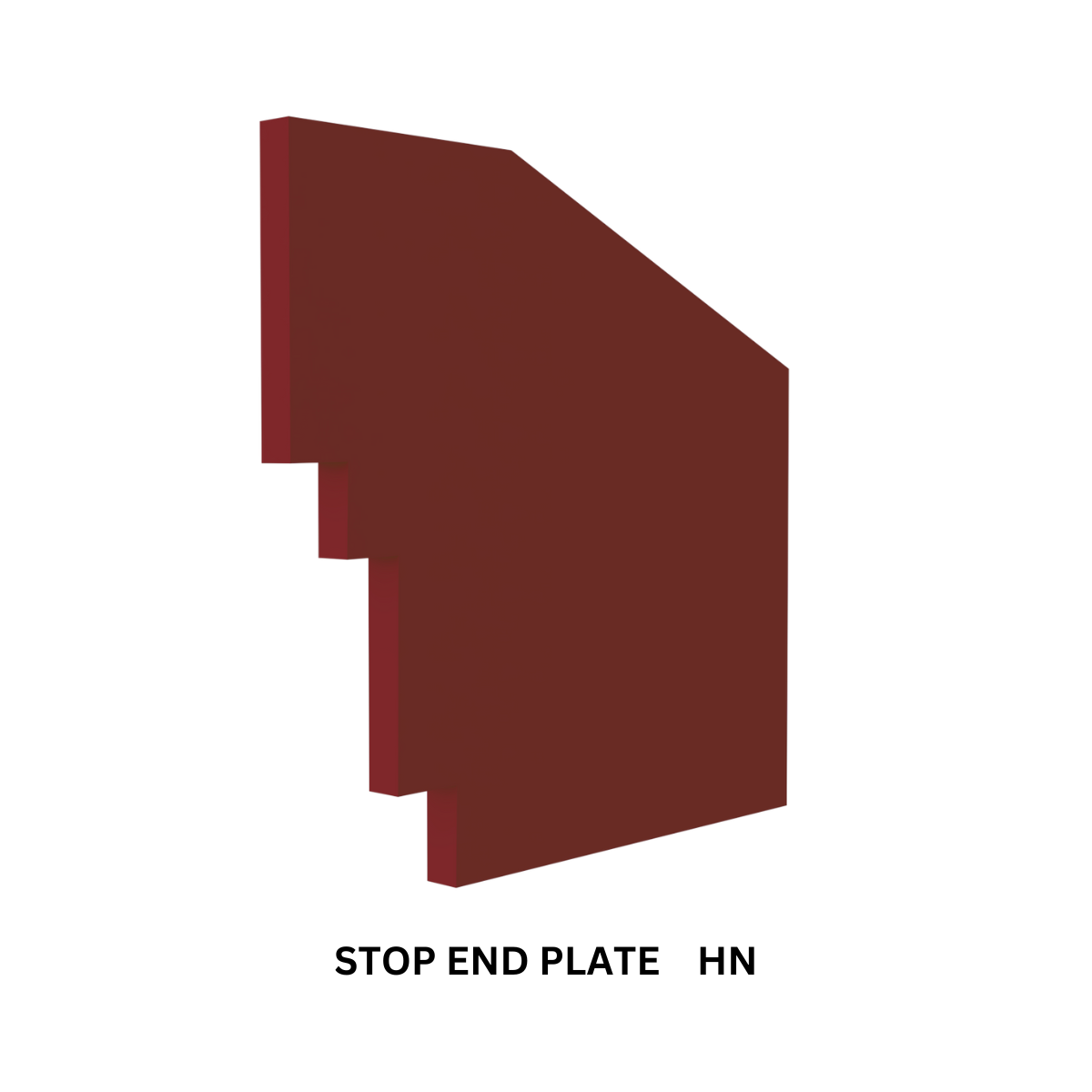

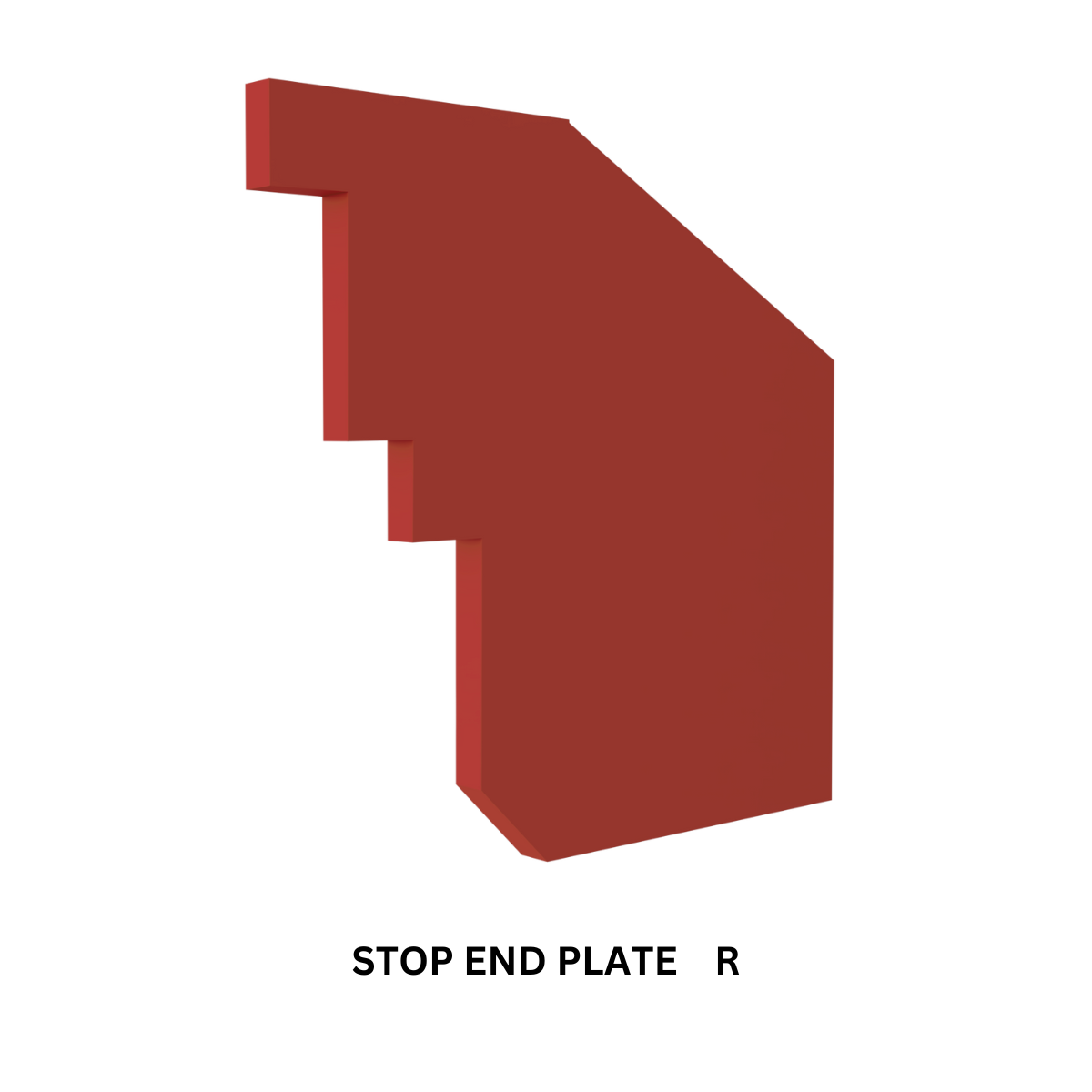

Gutter Stop End

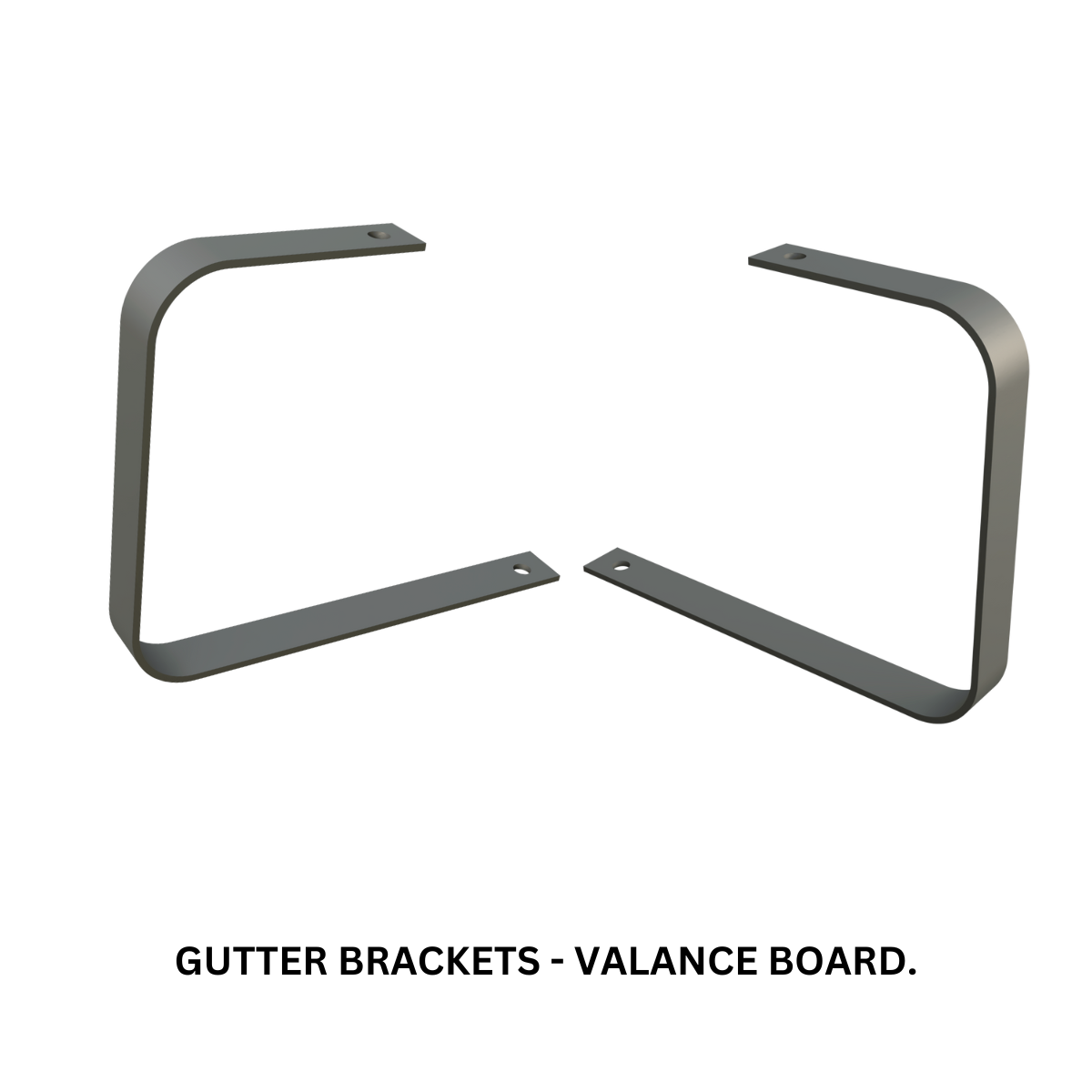

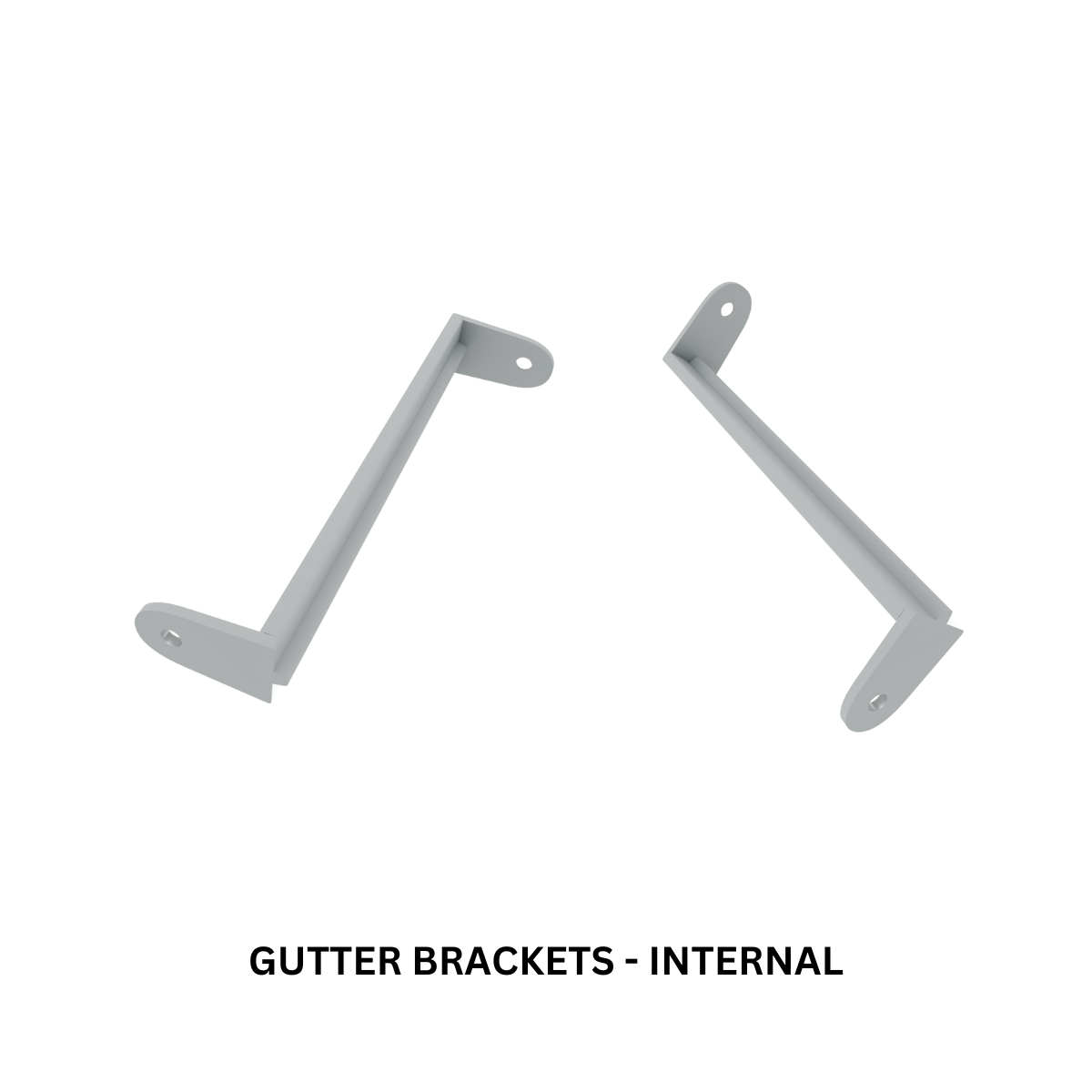

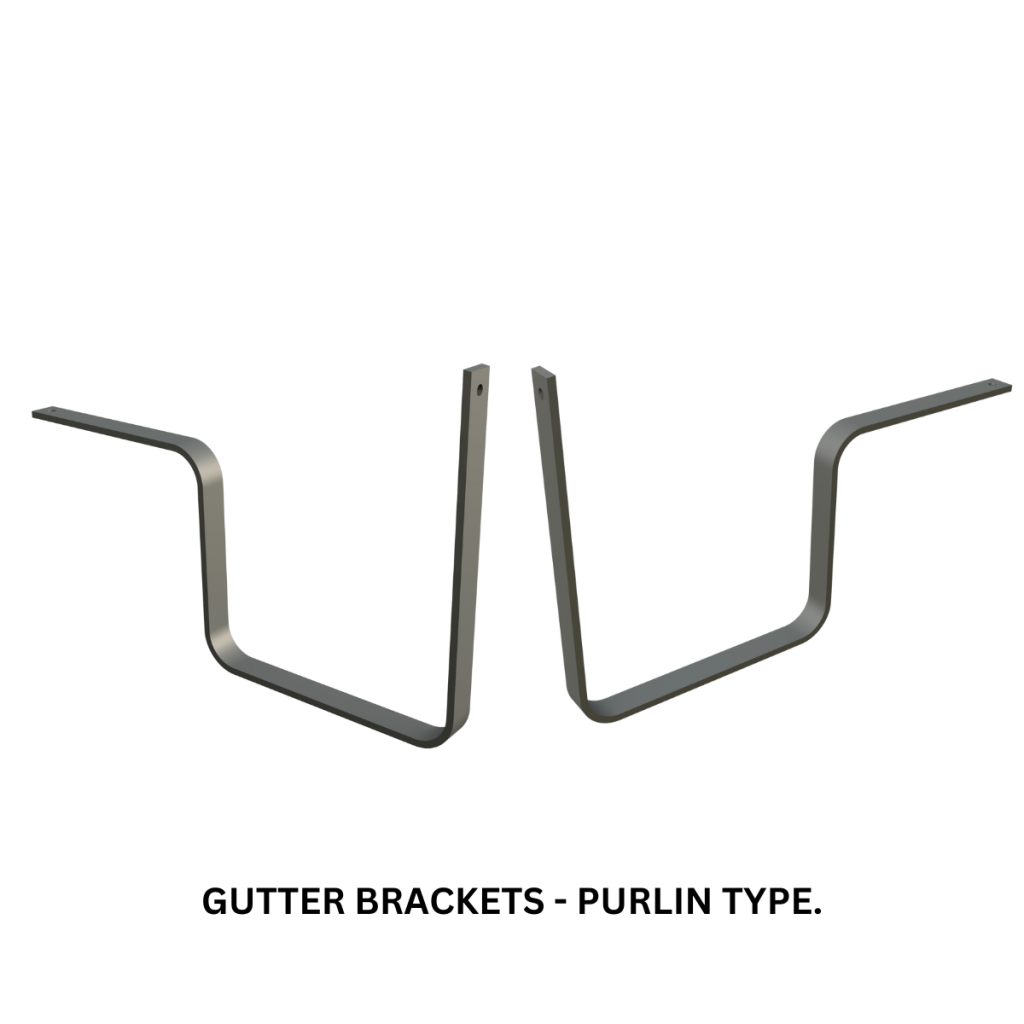

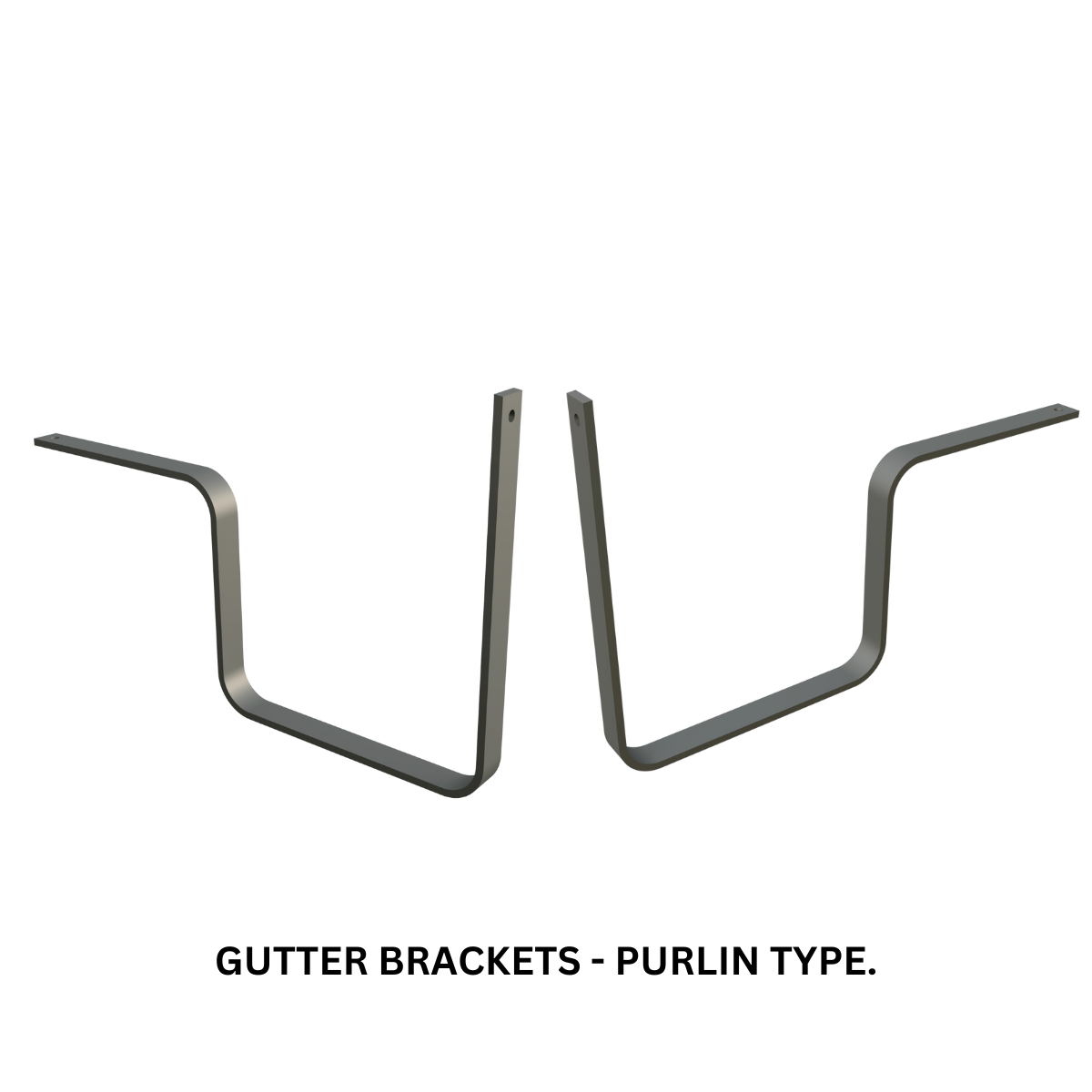

Gutter Brackets
P = Purlin Type Bracket VB = Valance Board Type Bracket INT = Internal Type Aluminium Bracket
Specifications
| Gutter | Girth | Downpipe / Nozzle / Offset Sizes | Round Nozzle | Gutter Box Dimensions | Bracket type | Max Length |
| Type A | 470 mm | 100 x 100 mm | 100 | 150 x 150 | P/VB/INT | 6 m |
| Type B | 700 mm | 150 x 150 mm | 150 | 300 x 300 | P/VB | 6 m |
| Type C | 310 mm | 70 x 50 mm | 75 | 100 x 100 | P/VB/INT | 2.4 m |
| Type D | 470 mm | 100 x 100 mm | 100 | 150 x 150 | INT | 2.4 m |
| Type E | 470 mm | 100 x 100 mm | 100 | 150 x 150 | P/VB/INT | 6 m |
| Type F | 470 mm | 125 x 75 mm | 100 | 150 x 150 | INT | 6 m |
| Type P | 470 mm | 125 x 75 mm | 100 | 150 x 150 | INT | 6 m |
| Type R | 470 mm | 125 x 75 mm | 100 | 150 x 150 | INT | 6 m |
| Type S | 470 mm | 125 x 75 mm | 100 | 150 x 150 | INT | 6 m |
P = Purlin Type Bracket VB= Valance Board Type Bracket INT= Internal Type Aluminium Bracket

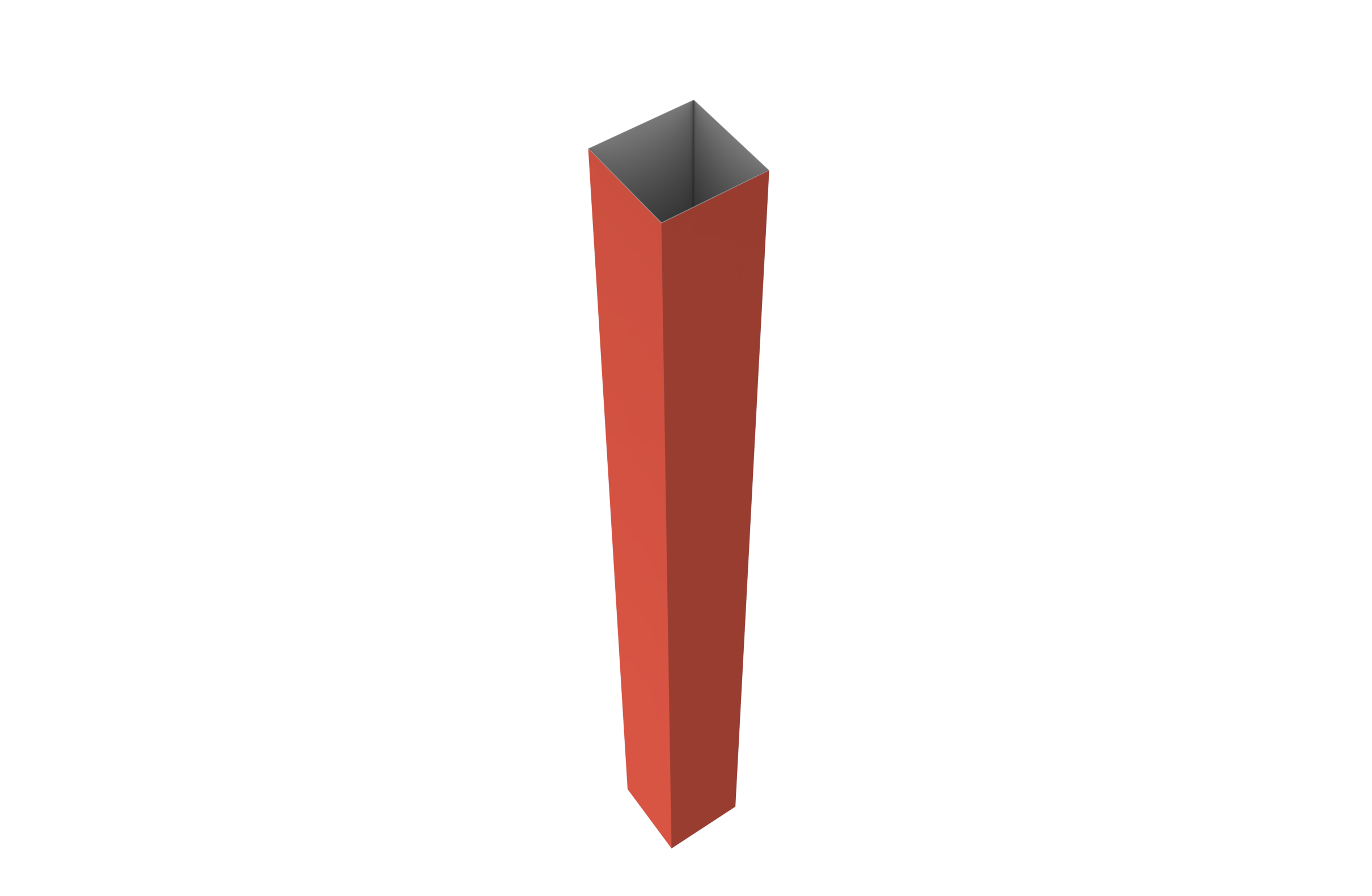

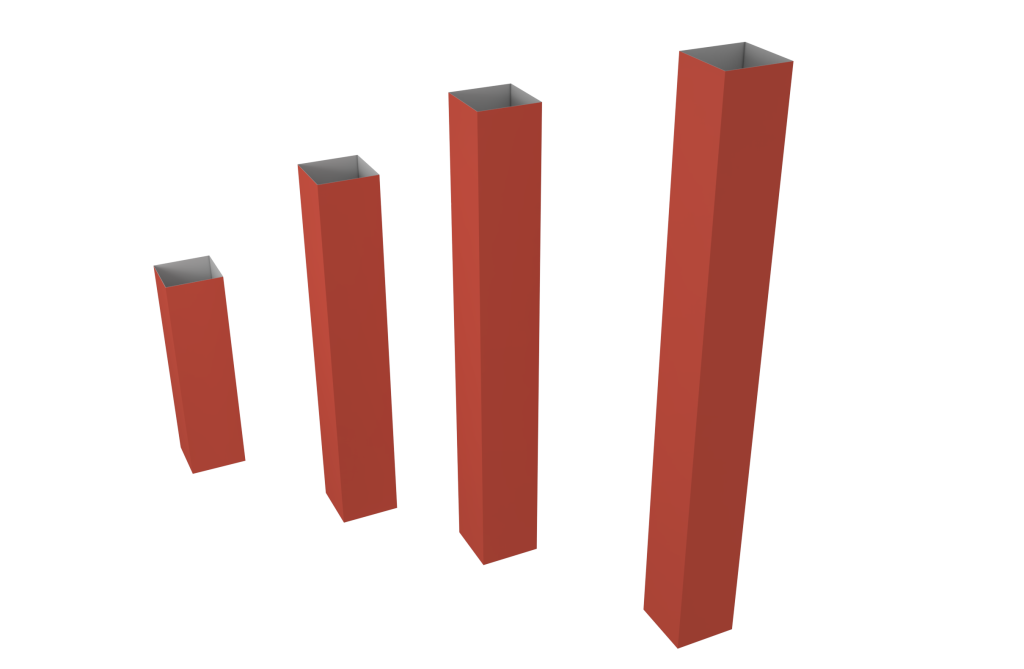

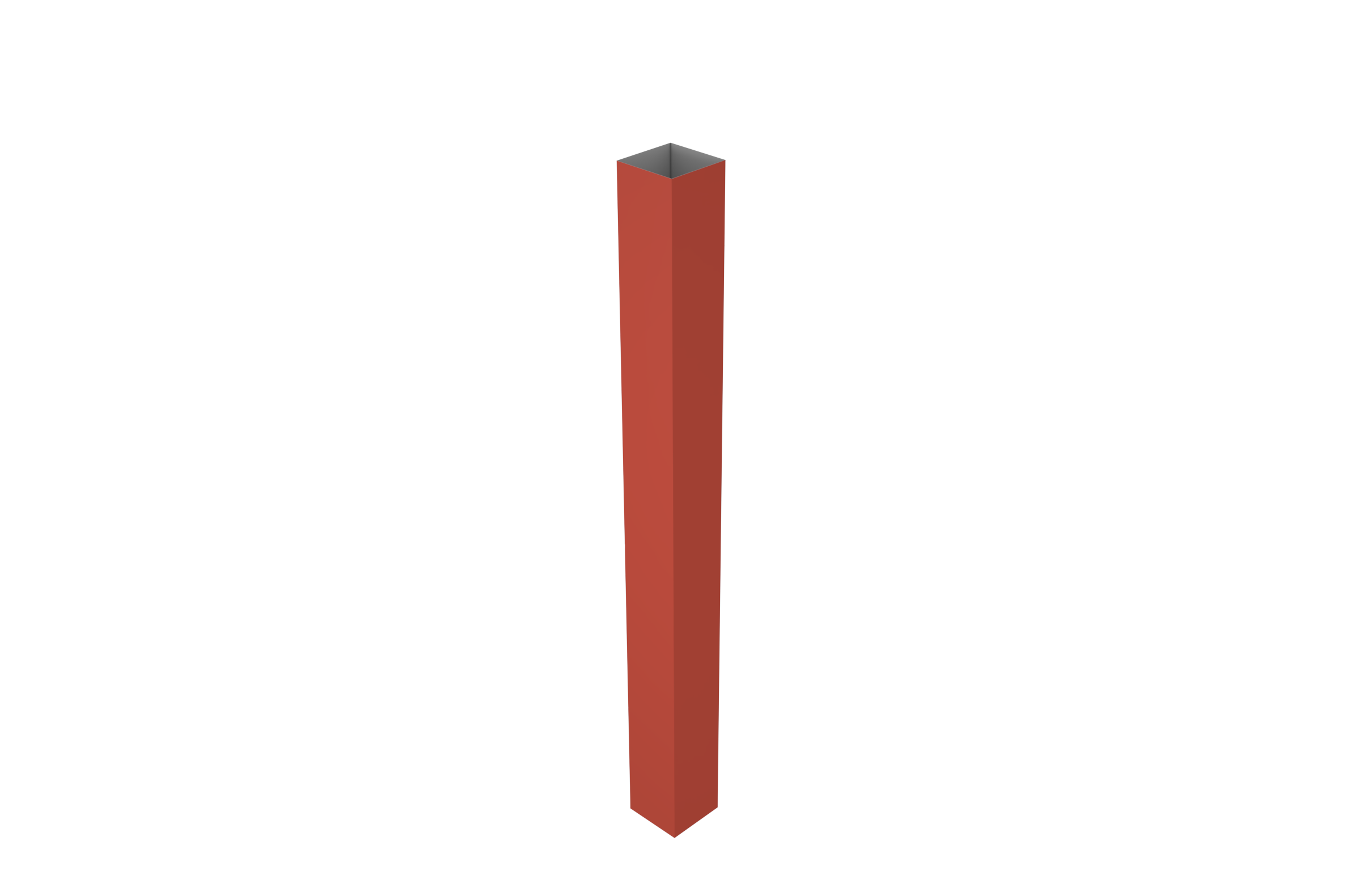

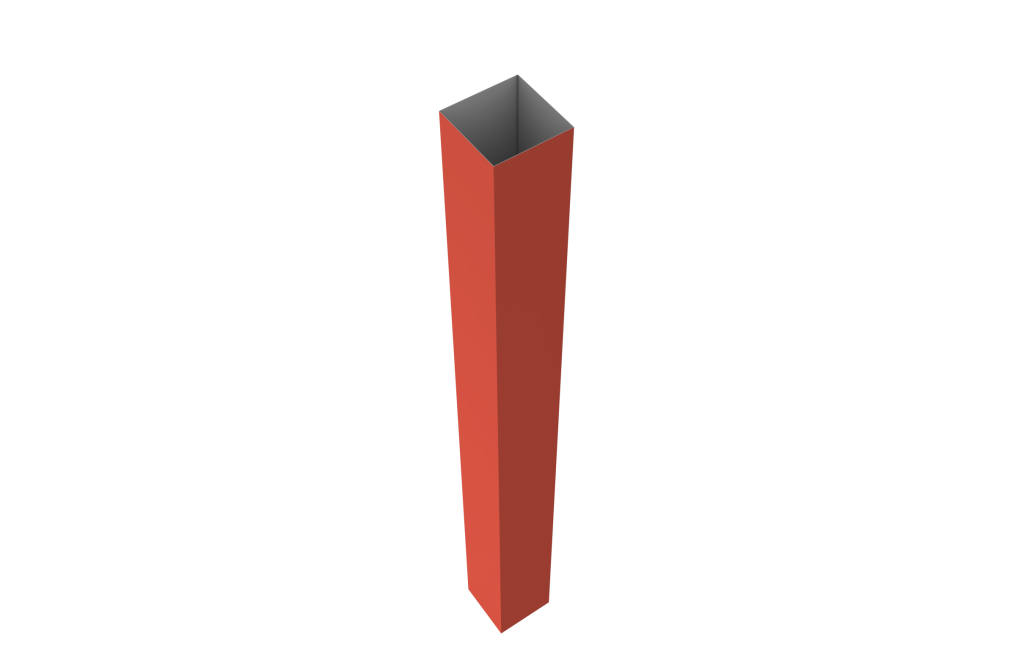

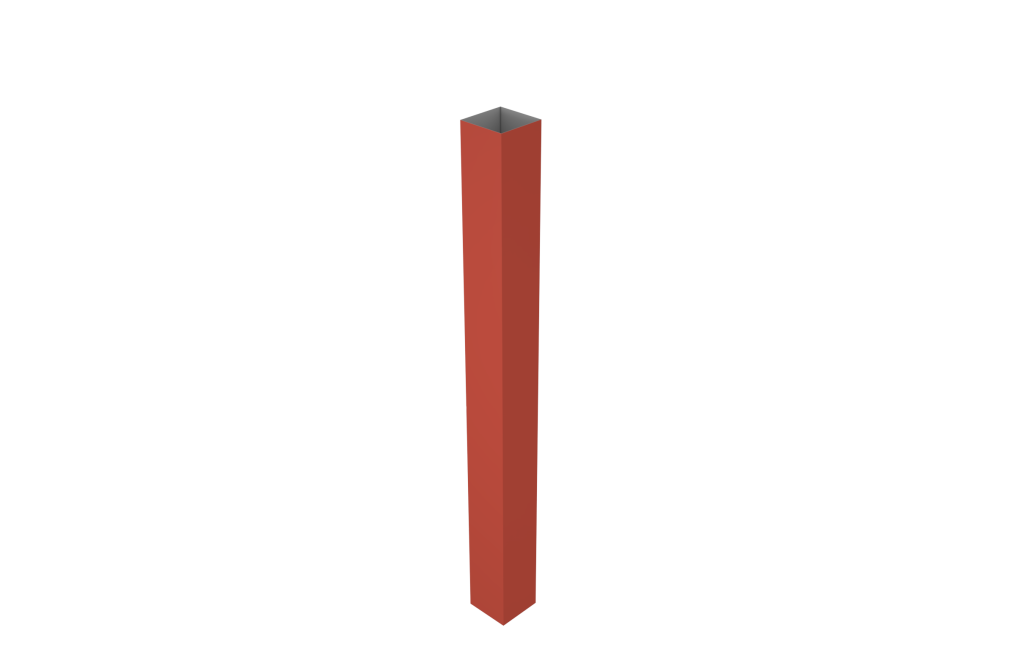

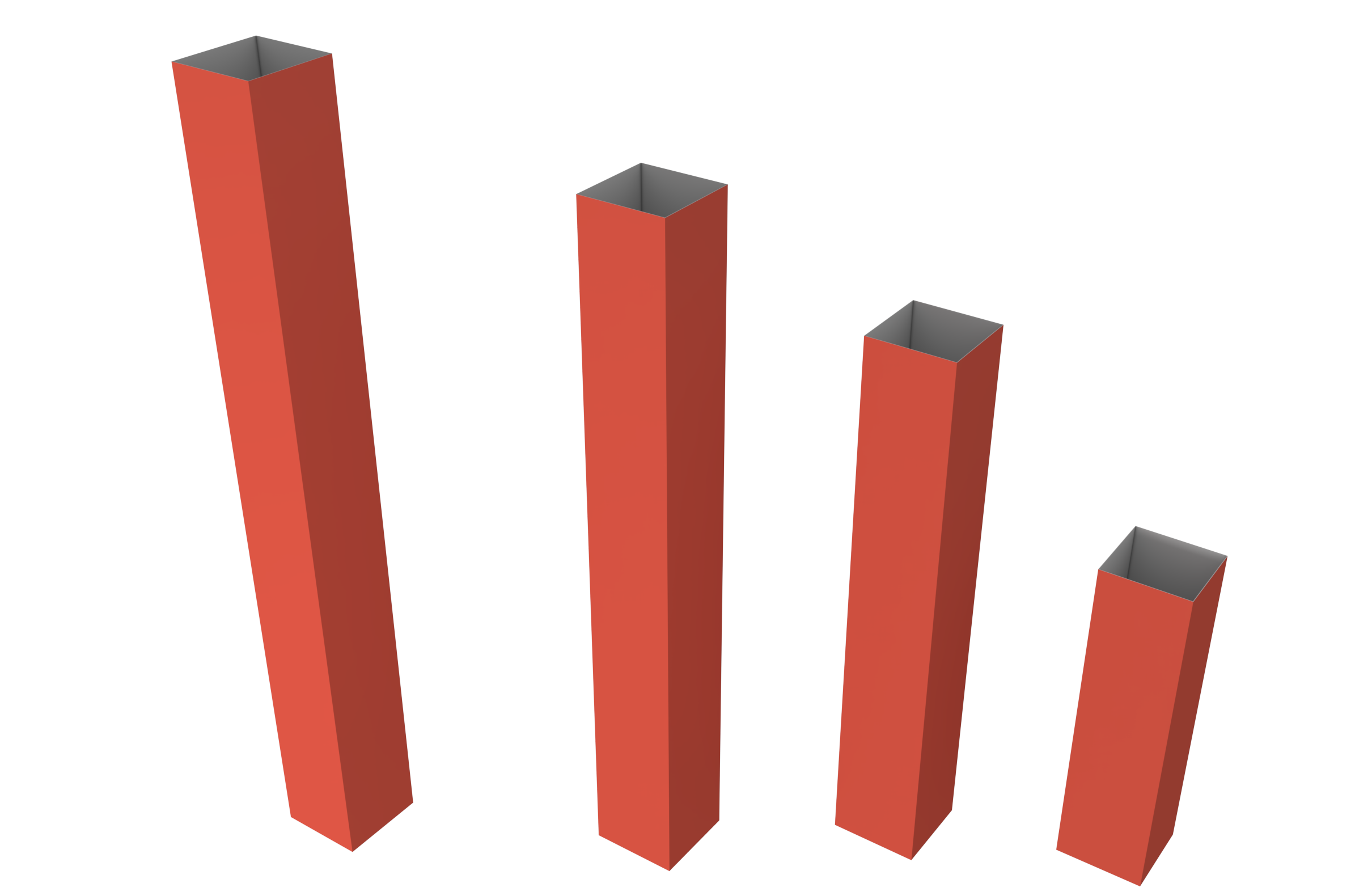

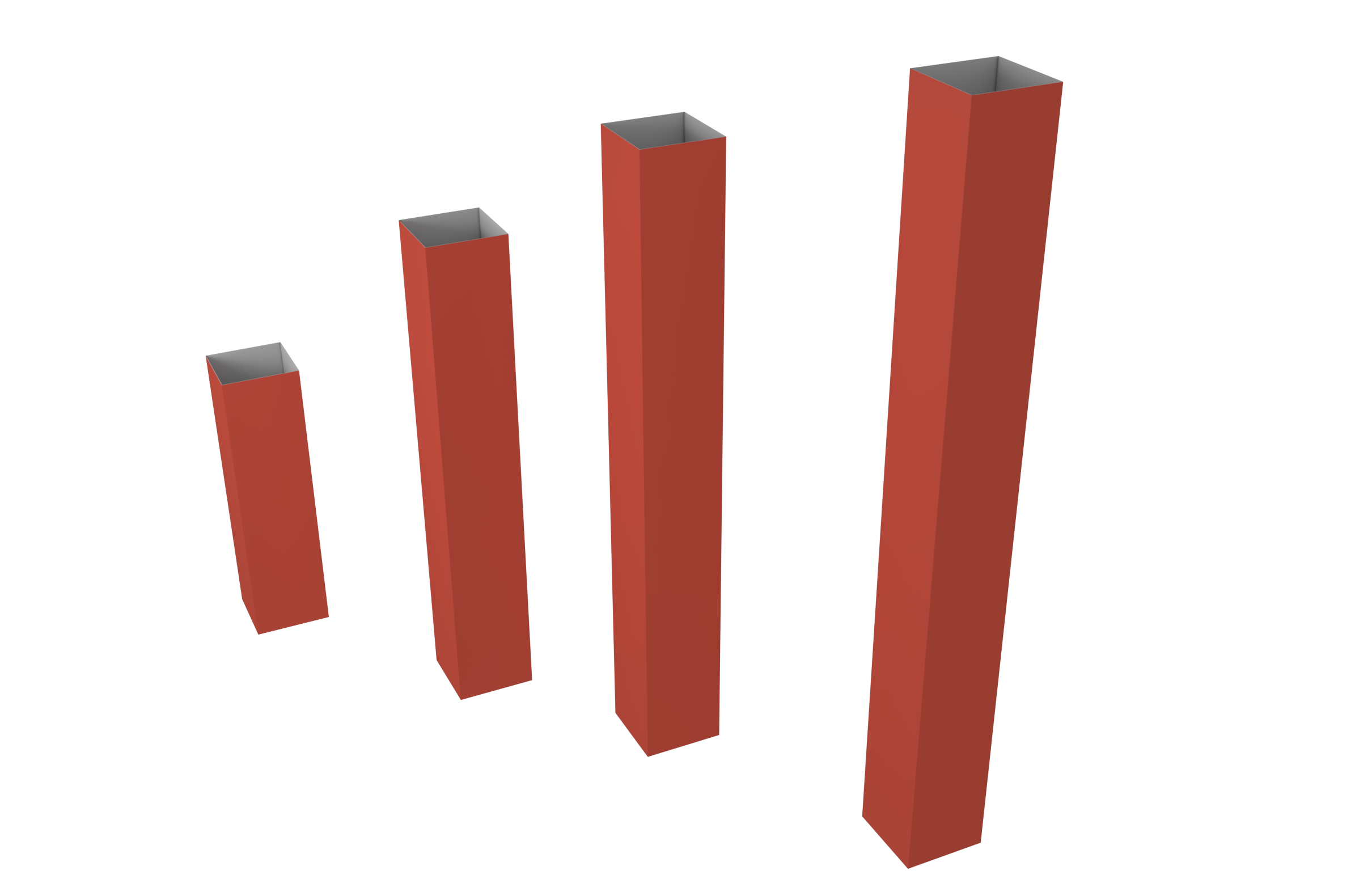

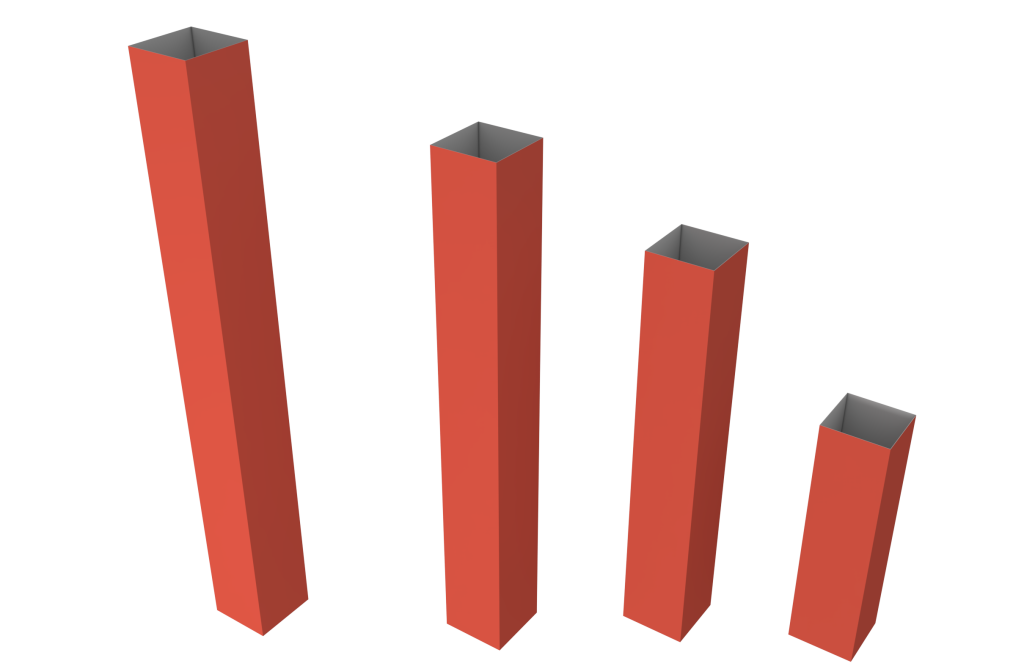

Downpipe Sizes
| Type 1 | 70 x 50 mm |
| Type 2 | 100 x 100 mm |
| Type 3 | 125 x 125 mm |
| Type 4 | 150 x 150 mm |
| Type 5 | 125 x 75 mm |
