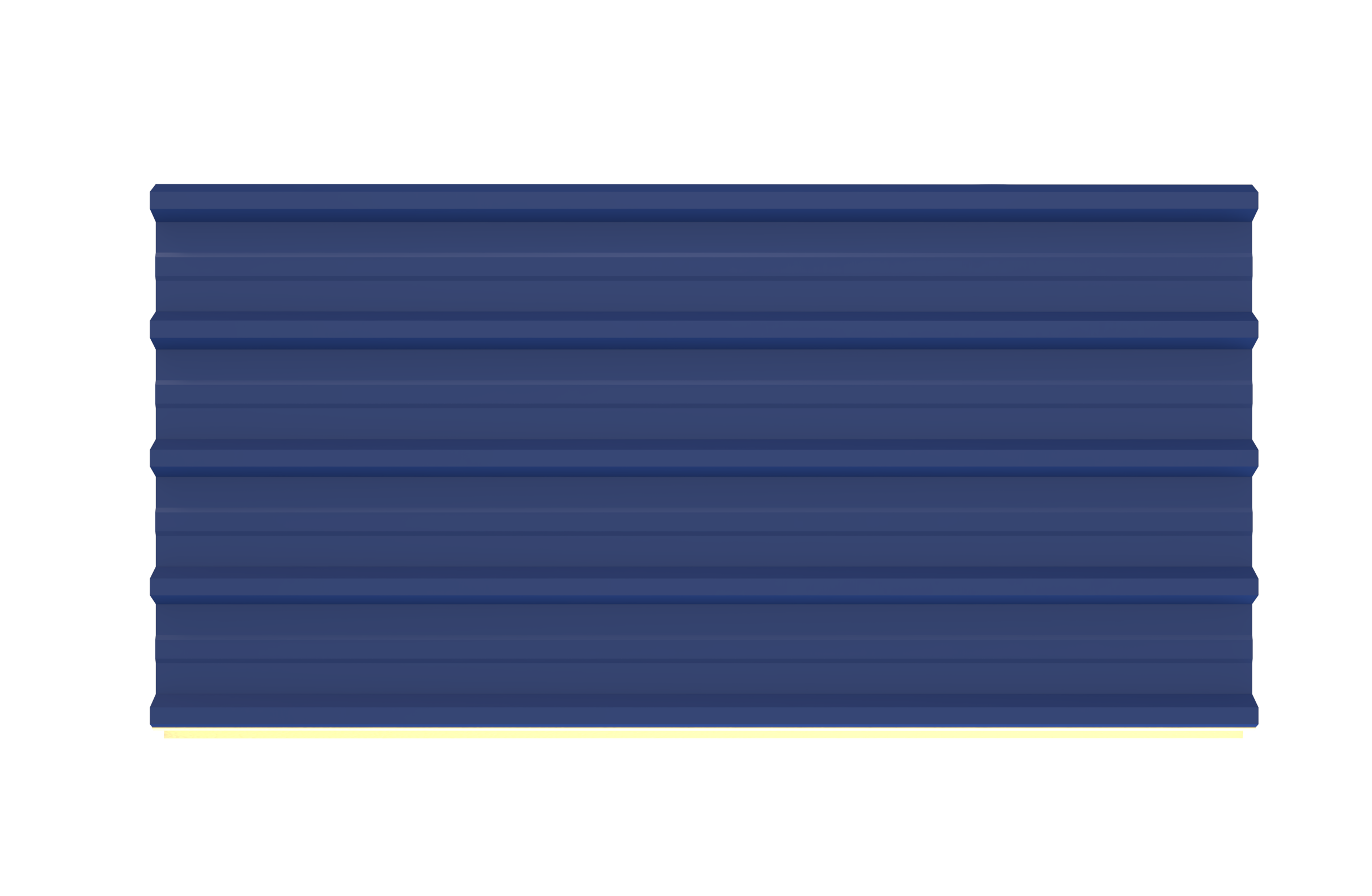

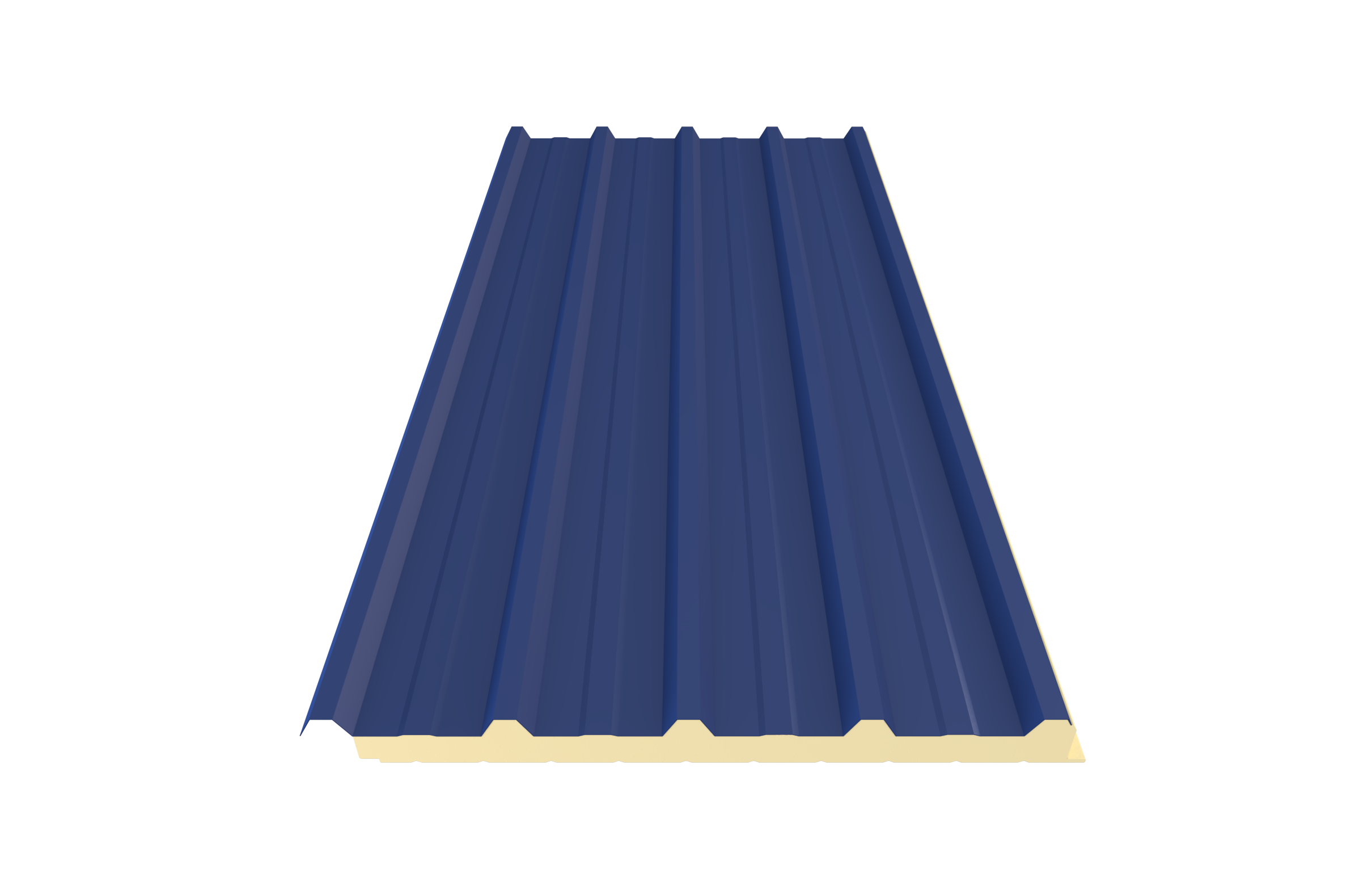

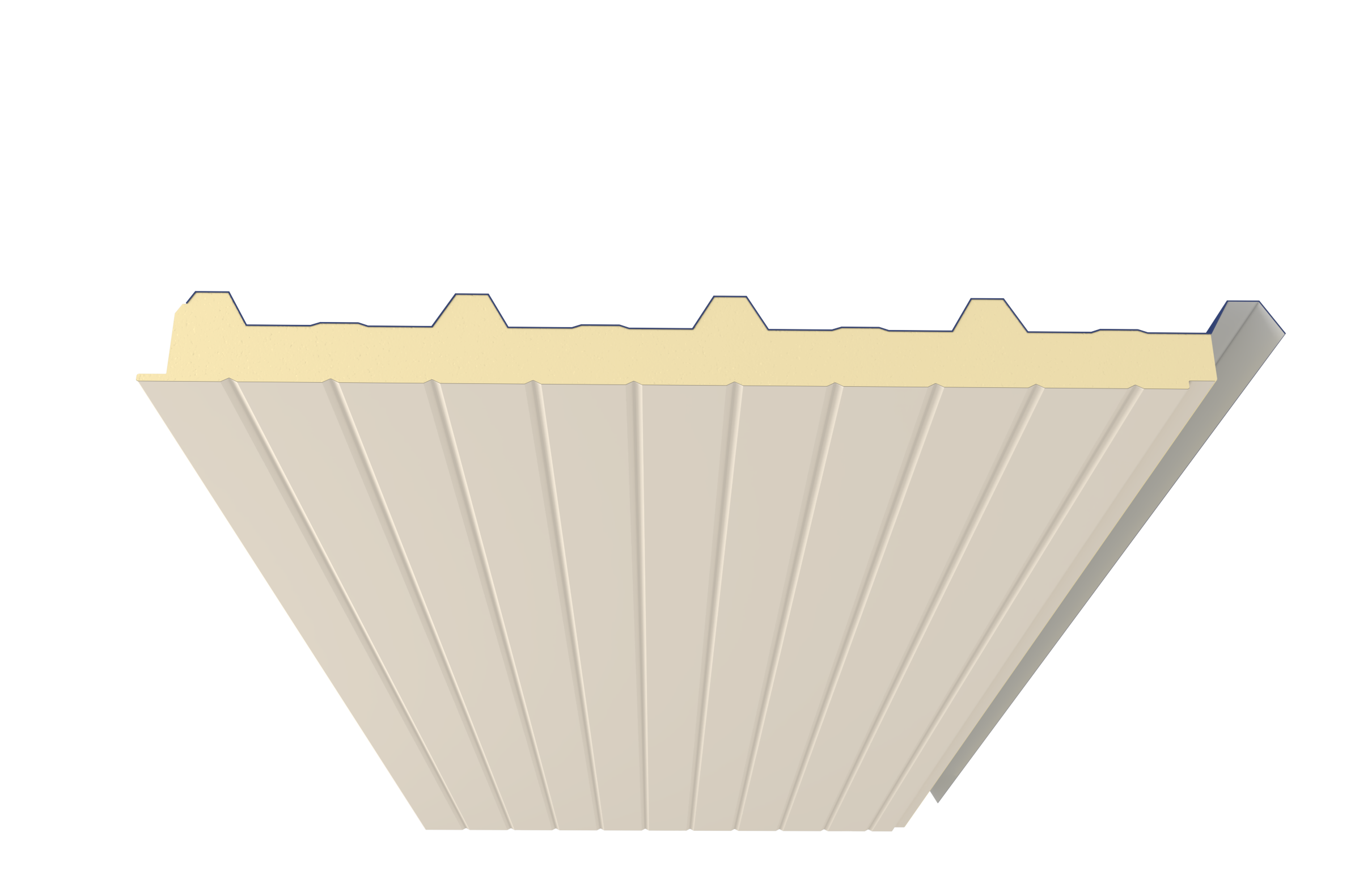

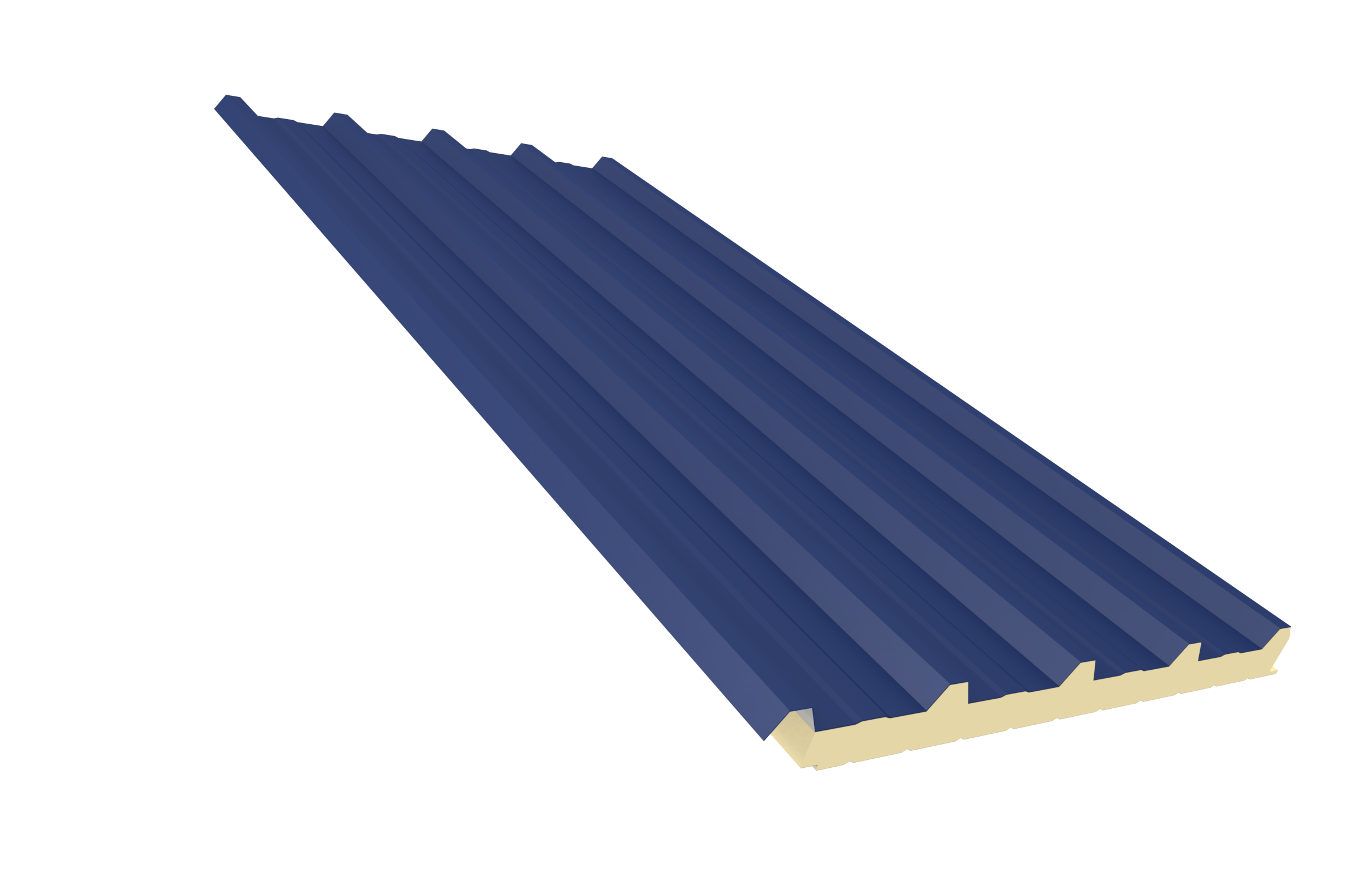

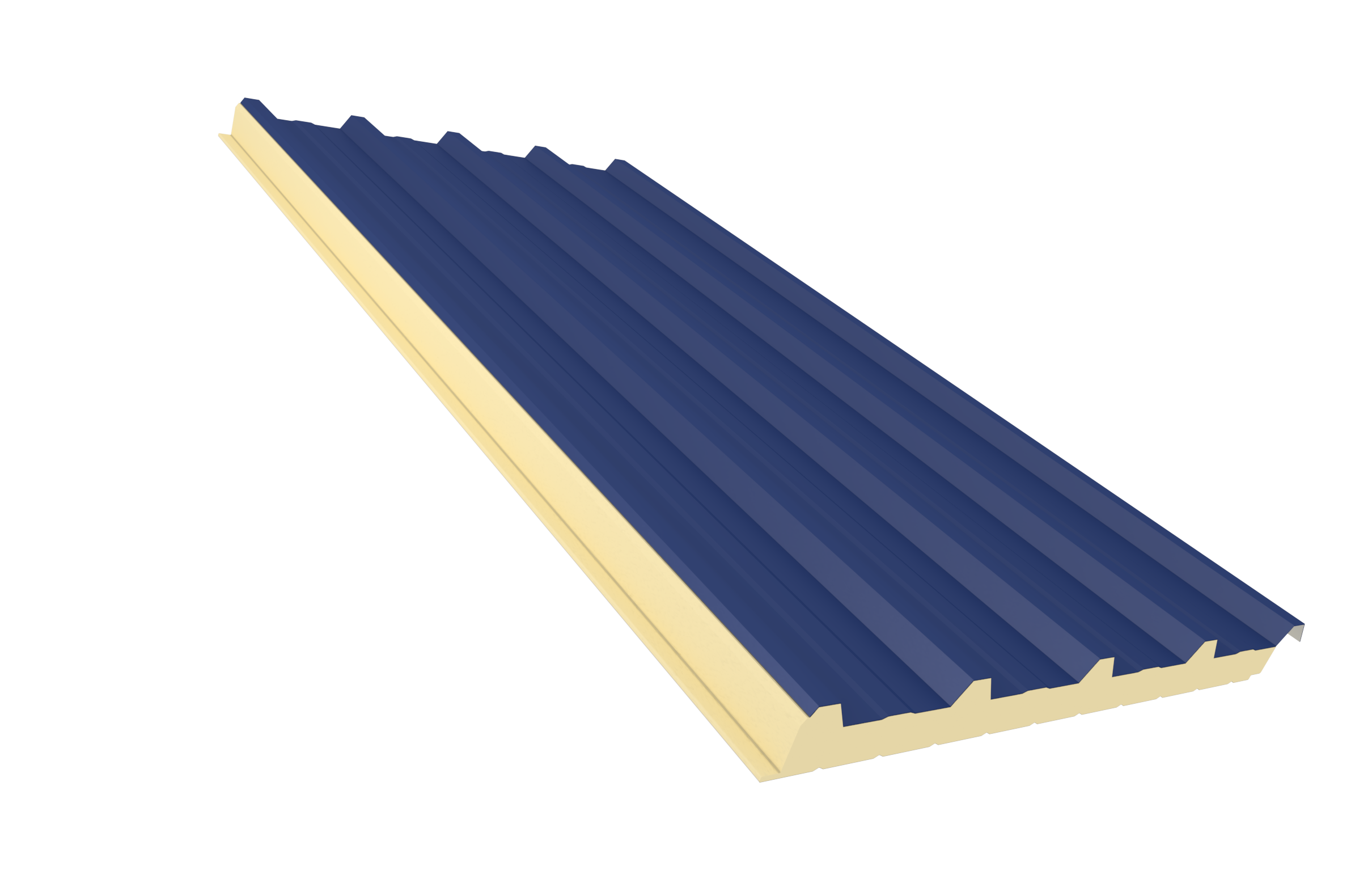

GLAMET G5 A40 is Self-Supporting metal roof panels, insulated with PU/PIR rigid foam, for pitched roofs. GLAMET Sandwich panels , both face are made with Zinc Aluminum Alloy coated sheet , which act as united structure with rigid foam core providing strength than other traditional roofs. It is available in various thickness and colour for preference and requirement. Glamet is 3 in 1 solution comprising of Benefits
- Roof
- Ceiling
- Heat insulation
Benefits
- Very good thermal Insulation
- High mechanical bearing capacity
- Dimensional stability
- Non- Water absorbency
- Aesthetical pleasing appearance
- Long lasting durability
- Ease and speed installation
Previous
Next
Specifications
Panel Sheet Specifications| External Face (Top Sheet) | 0.47 mm |
| Internal Face (Bottom Sheet) | 0.35 mm |
| Coating Class (g/m2) – External Face | AZ 150 |
| Coating Class (g/m2) – Internal Face | AZ 150 |
| S | K | Panel Weight | Sheet Thickness | |
| mm | Kcal/m2h 0C | Watt/m2 0C | kg/m2 | mm |
| 30 | 0.51 | 0.59 | 8.17 | 0.47/0.35 |
| 40 | 0.40 | 0.46 | 8.57 | 0.47/0.35 |
| 50 | 0.33 | 0.38 | 9.22 | 0.47/0.35 |
| 60 | 0.28 | 0.33 | 9.62 | 0.47/0.35 |
Polyurethane Specifications
| Polyurethane Rigid Foam Insulation Layer |
| Average Density with 40 kg/m3 |
| Average Thermal Conductivity : 0.02 W/m K |
| Temperature Range from – 30 ◦C to 70 ◦C |
| Available Thicknesses: 30, 40, 50, 60 mm |

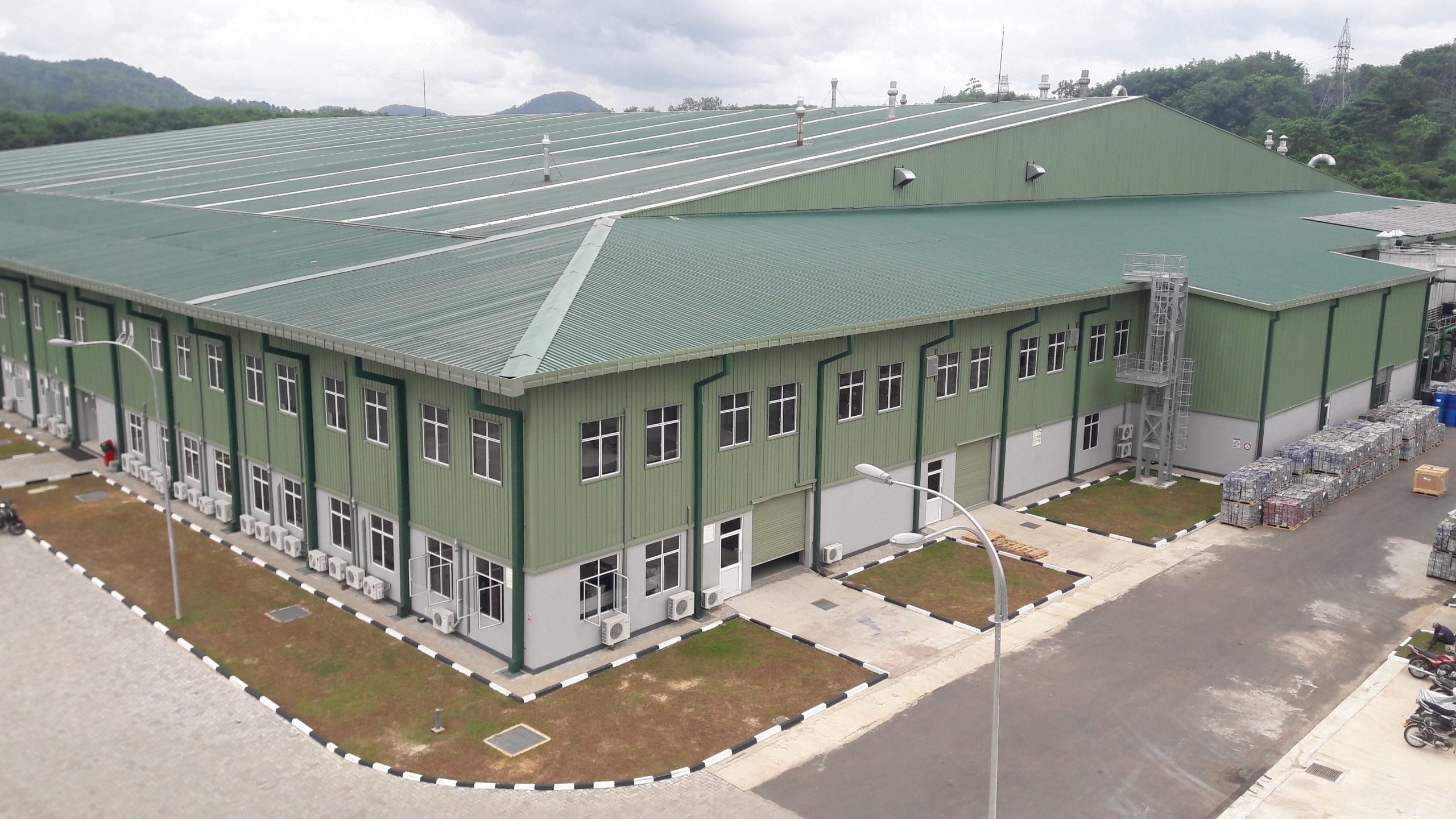

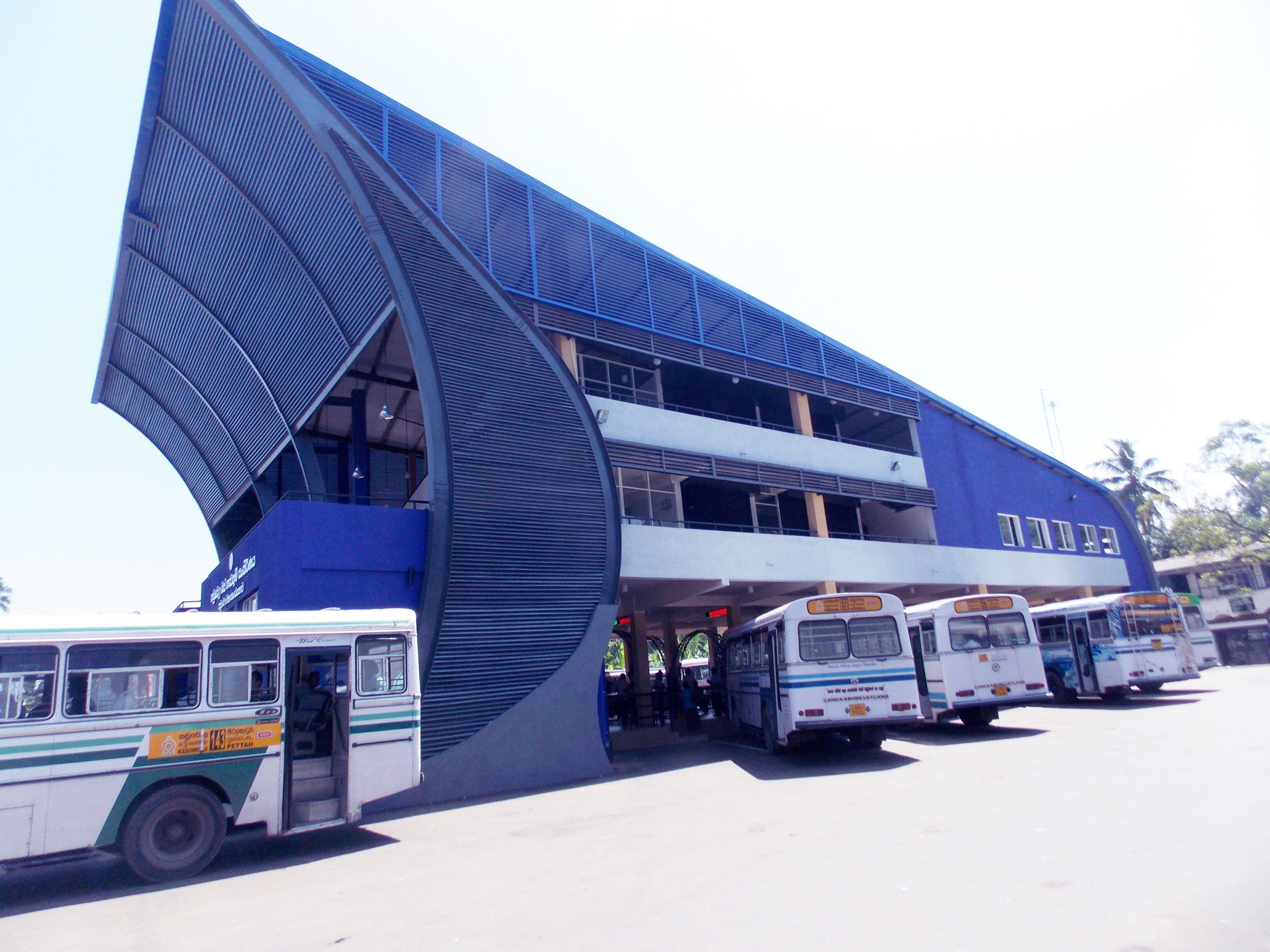

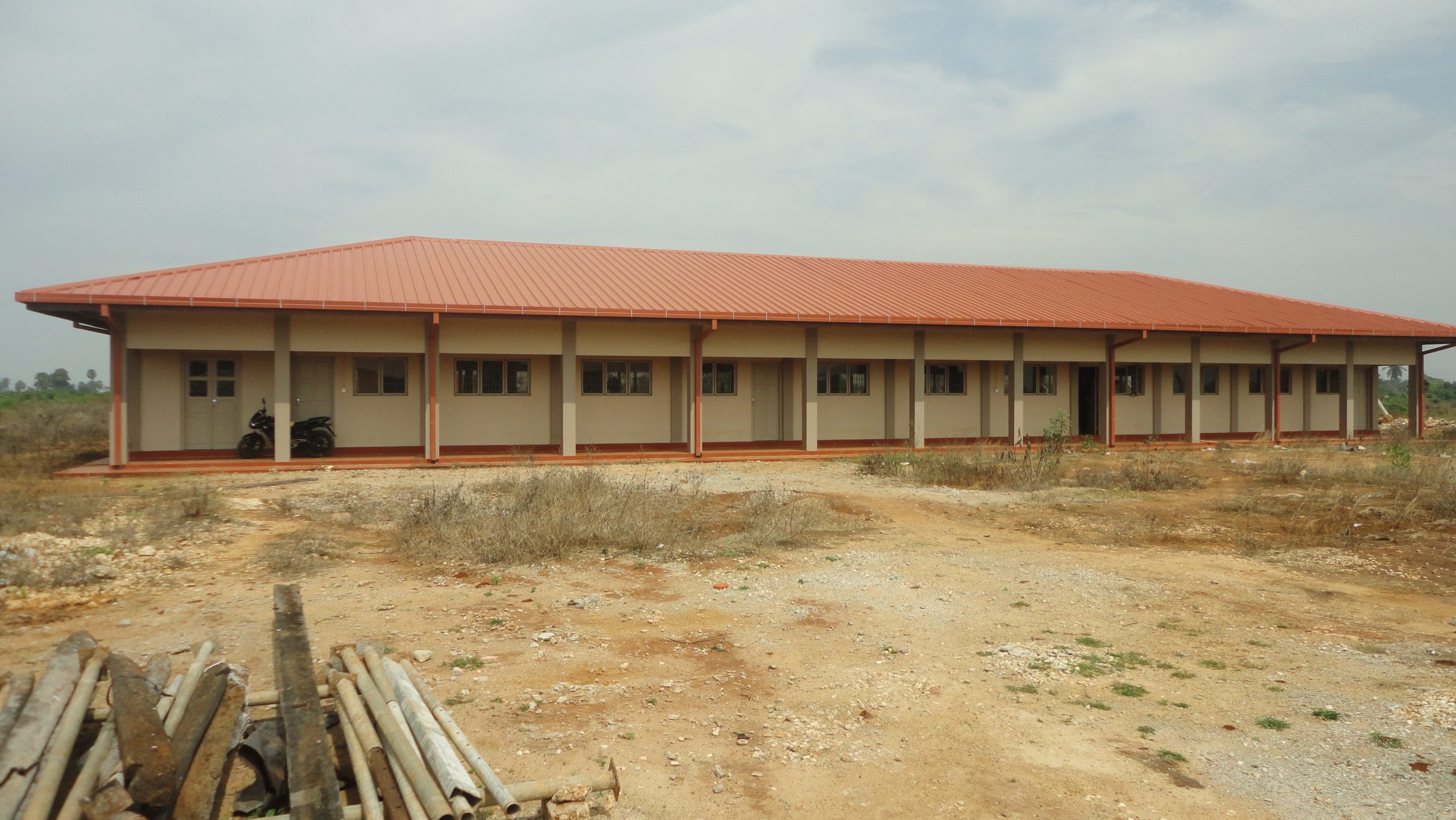

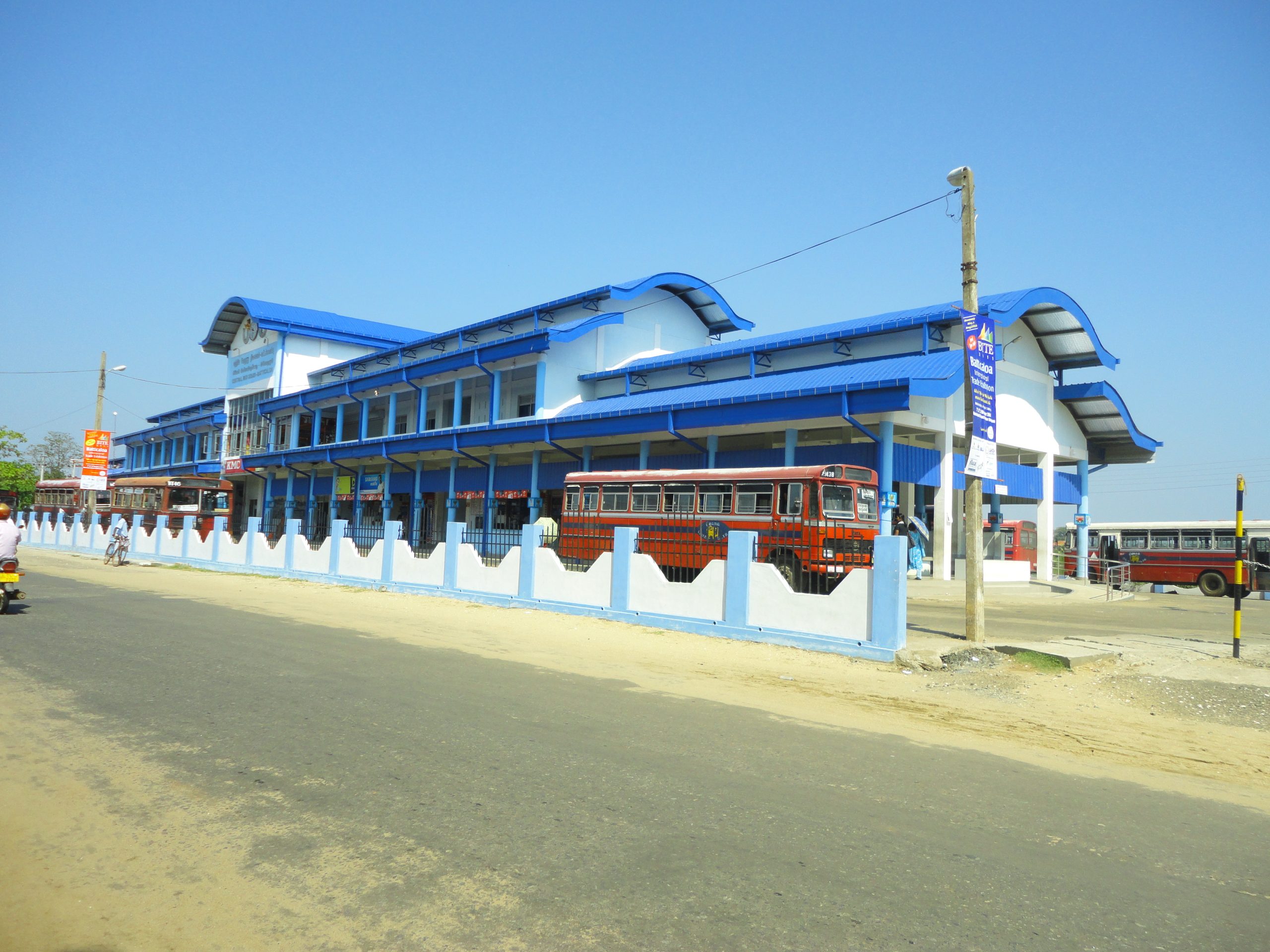

Completed Projects
